R1200GS 05-07 (K25) | Frame, Fairing, Cases

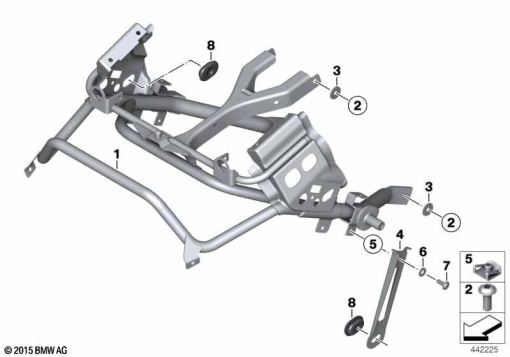

FAIRING BRACKET
Diagram #46_0856 | 9 parts | 1 available in shop
100%
Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 7 667 700 | FAIRING BRACKET | 1 | |
| 2 | 46 63 7 659 459 | OVAL-HEAD SCREW WITH ANTI-ROTATION LOCK - M6X16 | 1 | |
| 3 | 07 11 9 904 427 | WASHER - 6-200 | 1 | |
| 4 | 46 63 7 673 253 | BRACKET LEFT | 1 | |
| 4 | 46 63 7 673 254 | BRACKET RIGHT | 1 | |
| 5 | 46 63 7 658 638 | FLAT NUT - M5 | 1 | |
| 6 | 07 11 9 901 598 | WASHER - A5,3 | 1 | |
| 7 | 46 63 7 686 286 | FLANGED CAP SCREW - 5X16-A2-80 | 1 | |
| 8 | 46 63 7 673 911 | RUBBER GROMMET, SLOT | 1 |
