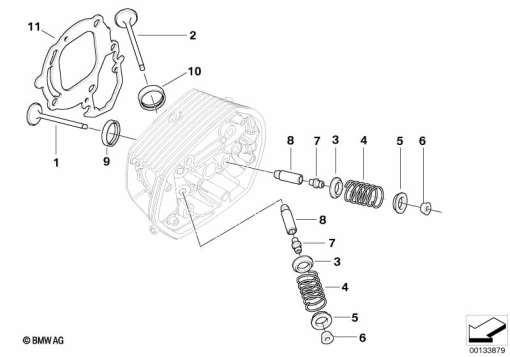

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 34 7 702 345 | INTAKE VALVE - D=36MM | - | |
11 34 7 712 337 | INTAKE VALVE - D=36MMAlternative for position 1 | - | ||
| 2 | 11 34 7 692 459 | EXHAUST VALVE - D=31MM | - | |
11 34 7 712 338 | EXHAUST VALVE - D=31MMAlternative for position 2 | - | ||
| 3 | 11 34 7 685 434 | LOWER SPRING PLATE | - | |
| 4 | 11 34 7 671 091 | VALVE SPRING | - | |
| 5 | 11 34 7 722 603 | UPPER SPRING PLATE | - | |
| 6 | 11 34 1 340 846 | VALVE COLLET - D=5 | - | |
| 7 | 11 34 1 340 849 | VALVE SEAL RING - D=5 | - | |
| 8 | 11 12 7 672 099 | VALVE GUIDE INLET - D=11,2/D=4,7 | - | |
11 12 7 676 674 | VALVE GUIDE EXHAUST - D=11,2/D=4,7Alternative for position 8 | - | ||
| 9 | 11 12 7 688 868 | VALVE SEAT RING INTAKE | - | |
| 10 | 11 12 7 688 869 | VALVE SEAT RING EXHAUST | - | |
| 11 | 11 12 7 672 598 | CYL. HEAD GASKET, 3 COMPONENTS | - |
