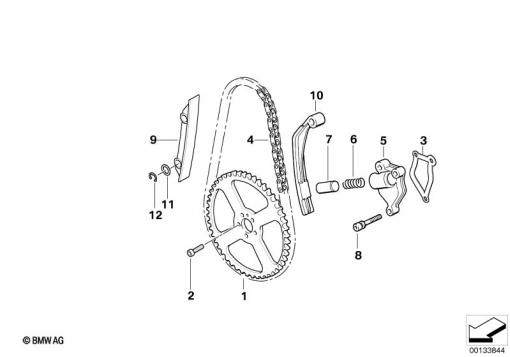

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 31 7 668 125 | SPROCKET | - | |
| 2 | 07 12 9 904 494 | ISA SCREW - M5X16-10.9-PHR | - | |
| 3 | 11 31 7 674 453 | GASKET | - | |
| 4 | 11 31 7 694 426 | TIMING CHAIN | - | |
| 5 | 11 31 1 340 726 | HOUSING | - | |
| 6 | 11 31 1 335 584 | COIL SPRING | - | |
| 7 | 11 31 7 668 127 | PISTON | - | |
| 8 | 07 12 9 905 118 | ISA SCREW - M6X25 | - | |
| 9 | 11 31 1 341 293 | GUIDE RAIL | - | |
| 10 | 11 31 7 677 666 | CHAIN TENSIONER | - | |
| 11 | 11 31 1 460 923 | SHIM - 8,2X14X1,2 | - | |
| 12 | 07 11 9 932 841 | CIRCLIP - D=6MM | - |
