R1200GS 05-07 (K25) | Engine

CAMSHAFT CAMSHAFT

Diagram #11_3676 | 4 parts

100%

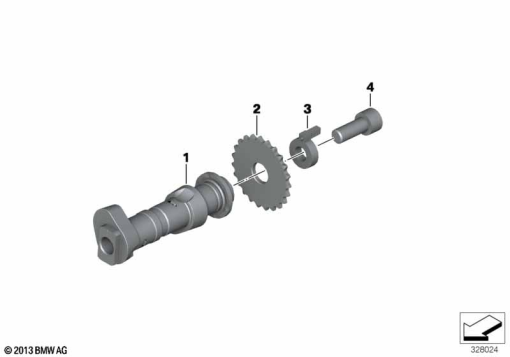

R1200GS 05-07 (K25) CAMSHAFT CAMSHAFT exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
11 31 7 668 723
CAMSHAFT CAMSHAFT1
2
11 31 7 677 680
SPROCKET1
3
11 31 7 677 681
CAMSHAFT SENSOR RELUCTOR RING1
4
07 12 9 903 613
ISA SCREW - M10X1,25X251
