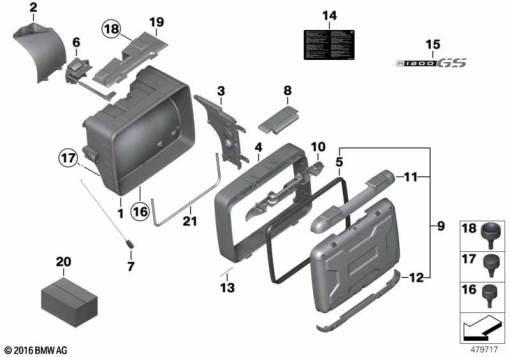

Parts List (31)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 54 7 677 394 | CASE BOTTOM, RIGHT | - | |
71 60 7 692 175 | CASE BOTTOM, LEFTAlternative for position 1 | - | ||
| 2 | 71 60 7 691 969 | HEAT RESISTANT PLATE | - | |
| 3 | 46 54 7 687 021 | ADJUST PLATE FRONT LEFT | - | |
46 54 7 687 022 | ADJUST PLATE FRONT RIGHTAlternative for position 3 | - | ||
46 54 7 687 023 | ADJUST PLATE REAR LEFTAlternative for position 3 | - | ||
46 54 7 687 024 | ADJUST PLATE REAR RIGHTAlternative for position 3 | - | ||
| 4 | 46 54 7 677 402 | ADJUST FRAME | - | |
| 5 | 71 60 7 659 600 | GASKET, CASE LID - L=1420MM | - | |
46 54 9 457 451 | GASKET, CASE LIDAlternative for position 5 | - | ||
| 6 | 46 54 7 679 087 | ROTARY LEVER, UNLOCKING, TOPCASE | - | |
51 25 7 687 029 | TOPCASE LOCKING MECHANISM, LEFTAlternative for position 6 | - | ||
71 60 7 687 030 | TOPCASE LOCKING MECHANISM, RIGHTAlternative for position 6 | - | ||
| 7 | 71 60 7 692 098 | CATCH - L=410MM | - | |
| 8 | 71 60 7 659 597 | CARRIER HANDLE | - | |
| 9 | 46 54 7 677 386 | CASE LID/TOPCASE LID | - | |
| - | 71 60 7 682 774 | LOCK STRIP | - | |
| 10 | 71 60 7 682 774 | LOCK STRIP | - | |
| 11 | 46 54 7 677 389 | PROTECTIVE MOULDINGS, TOP | - | |
| 12 | 46 54 7 677 390 | PROTECTIVE MOULDINGS, BOTTOM | - | |
| 13 | 71 60 7 660 615 | HINGE AXLE | - | |
| 14 | 51 14 7 677 409 | INSTRUCTION NOTICE, PAYLOAD | - | |
71 60 7 689 366 | LABEL "DISTANCE ESD-SUITCASE"Alternative for position 14 | - | ||
| 15 | 46 54 7 684 228 | STICKER - R1200GS | - | |
| 16 | 52 53 7 664 664 | BUMP STOP - H=10 | - | |
| 17 | 18 12 7 651 065 | STOP BUFFER - D12X6 | - | |
| 18 | 52 53 2 347 534 | RUBBER SUPPORT - D=18MM | - | |
| 19 | 46 54 7 683 595 | COVER LEFT | - | |
46 54 7 683 596 | COVER RIGHTAlternative for position 19 | - | ||
| 20 | 71 60 7 665 793 | SET: SET OF SCREWS FOR CASE | - | |
| 21 | 46 54 7 677 404 | ADJUST-LEVER | - |
