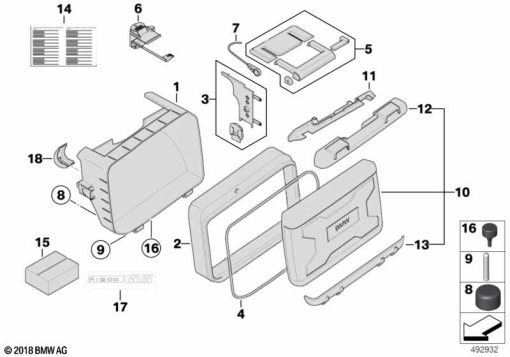

Parts List (24)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 71 60 7 697 711 | BOTTOM PART F TOP CASE | - | |
71 60 7 707 241 | BOTTOM PART F TOP CASEAlternative for position 1 | - | ||
| - | 71 60 7 707 239 | SET: SET,SUPPORTING PLATES F TOPCASE | - | |
| 2 | 46 54 7 677 402 | ADJUST FRAME | - | |
| 3 | 46 54 7 687 161 | ADJUSTMENT PLATE FOR "TOPCASE," LEFT | - | |
46 54 7 687 162 | ADJUSTMENT PLATE FOR "TOPCASE," RIGHTAlternative for position 3 | - | ||
| 4 | 71 60 7 659 600 | GASKET, CASE LID - L=1420MM | - | |
| 5 | 71 60 7 659 597 | CARRIER HANDLE | - | |
| 6 | 46 54 7 679 087 | ROTARY LEVER, UNLOCKING, TOPCASE | - | |
71 60 7 697 313 | TOPCASE LOCKING MECHANISMAlternative for position 6 | - | ||
| 7 | 71 60 7 692 098 | CATCH - L=410MM | - | |
| 8 | 46 54 7 679 085 | COVER BOLT | - | |
| 9 | 71 60 7 660 615 | HINGE AXLE | - | |
| 10 | 46 54 7 677 386 | CASE LID/TOPCASE LID | - | |
| - | 71 60 7 682 774 | LOCK STRIP | - | |
| 11 | 71 60 7 682 774 | LOCK STRIP | - | |
| 12 | 46 54 7 677 389 | PROTECTIVE MOULDINGS, TOP | - | |
| 13 | 46 54 7 677 390 | PROTECTIVE MOULDINGS, BOTTOM | - | |
| 14 | 46 54 7 679 092 | INSTRUCTION NOTICE, SAFETY INSTRUCTIONS | - | |
| 15 | 71 60 7 665 793 | SET: SET OF SCREWS FOR CASE | - | |
| 16 | 52 53 7 664 664 | BUMP STOP - H=10 | - | |
| 17 | 46 54 7 684 228 | STICKER - R1200GS | - | |
| 18 | 46 54 7 679 083 | MOUNTING PLATE LEFT | - | |
46 54 7 679 084 | MOUNTING PLATE RIGHTAlternative for position 18 | - |
