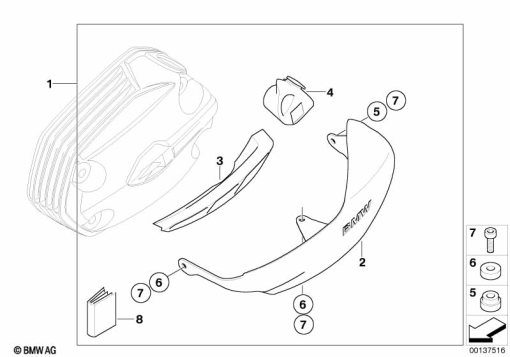

Parts List (19)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 71 60 7 658 636 | SET: SET, VALVE COVER GUARDS, ALUMINUM | - | |
| - | 71 60 7 709 405 | HPCARBON COVER, CYL. HEAD COVER, LEFT | - | |
| - | 71 60 7 711 813 | HP CARBON COVER, CYLINDER HEAD COVER, RT | - | |
| 2 | 71 60 7 681 771 | VALVE COVER PROTECTOR, LEFT | - | |
| - | Fits MODEL years 2005-09. | Fits MODEL years 2005-09. | - | |
| - | 71 60 7 688 973 | BUMP STOP, BOTTOM LEFT | - | |
| - | 71 60 7 692 055 | BUMP STOP, TOP LEFT | - | |
| 2 | 71 60 7 681 772 | VALVE COVER PROTECTOR, RIGHT | - | |
| - | Fits model years 2005-09. | Fits model years 2005-09. | - | |
| - | 71 60 7 688 974 | BUMP STOP, BOTTOM RIGHT | - | |
| - | 71 60 7 692 056 | BUMP STOP TOP RIGHT | - | |
| 3 | 71 60 7 688 973 | BUMP STOP, BOTTOM LEFT | - | |
71 60 7 688 974 | BUMP STOP, BOTTOM RIGHTAlternative for position 3 | - | ||
| 4 | 71 60 7 692 055 | BUMP STOP, TOP LEFT | - | |
71 60 7 692 056 | BUMP STOP TOP RIGHTAlternative for position 4 | - | ||
| 5 | 71 60 7 681 776 | COLLAR BUSH - DI=6,5 L=5 | - | |
| 6 | 71 60 7 681 777 | BUSH - DI=7 L=6.5 | - | |
| 7 | 07 12 9 903 979 | TORX SCREW - M6X20-U1-8.8 | - | |
| 8 | 01 29 7 698 177 | INST.INSTR. FOR ALUM. VALVE COVER GUARD | - |
