R1150GS ADV (R21A) | Transmission

OUTPUT SHAFT

Diagram #23_0748 | 47 parts

100%

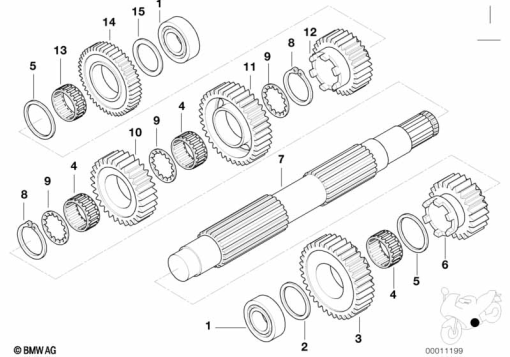

R1150GS ADV (R21A) OUTPUT SHAFT exploded view parts diagram

Parts List (47)

#Part NumberDescriptionQty
1
23 11 7 687 089
CLEAN BEARING GROOVED BALL BEARING - 25X52X15-
2
23 31 2 330 189
SHIM - 25X38X1,50-
23 31 2 333 129
SHIM - 25X38X1,52Alternative for position 2-
23 31 2 330 190
SHIM - 25X38X1,55Alternative for position 2-
23 31 2 333 130
SHIM - 25X38X1,57Alternative for position 2-
23 31 2 330 191
SHIM - 25X38X1,60Alternative for position 2-
23 31 2 333 131
SHIM - 25X38X1,62Alternative for position 2-
23 31 2 330 192
SHIM - 25X38X1,65Alternative for position 2-
23 31 2 333 132
SHIM - 25X38X1,67Alternative for position 2-
23 31 2 330 193
SHIM - 25X38X1,70Alternative for position 2-
23 31 2 333 133
SHIM - 25X38X1,72Alternative for position 2-
23 31 2 330 194
SHIM - 25X38X1,75Alternative for position 2-
23 31 2 333 134
SHIM - 25X38X1,77Alternative for position 2-
23 31 2 330 195
SHIM - 25X38X1,80Alternative for position 2-
23 31 2 333 135
SHIM - 25X38X1,82Alternative for position 2-
23 31 2 330 196
SHIM - 25X38X1,85Alternative for position 2-
23 31 2 333 136
SHIM - 25X38X1,87Alternative for position 2-
23 31 2 330 197
SHIM - 25X38X1,90Alternative for position 2-
23 31 2 333 137
SHIM - 25X38X1,92Alternative for position 2-
23 31 2 330 198
SHIM - 25X38X1,95Alternative for position 2-
23 31 2 333 138
SHIM - 25X38X1,97Alternative for position 2-
23 31 2 330 199
SHIM - 25X38X2,00Alternative for position 2-
23 31 2 333 139
SHIM - 25X38X2,02Alternative for position 2-
23 31 2 330 200
SHIM - 25X38X2,05Alternative for position 2-
23 31 2 333 140
SHIM - 25X38X2,07Alternative for position 2-
23 31 2 330 201
SHIM - 25X38X2,10Alternative for position 2-
3
23 00 2 330 251
SHIFT GEAR FOR 2ND. GEAR (to 08/02)-
23 21 7 675 168
SHIFT GEAR FOR 2ND. GEAR - EVO Z=40 (from 08/02)Alternative for position 3-
4
23 00 2 330 180
NEEDLE CAGE - 28X32X17-
5
23 21 2 330 210
SUPPORT - 28,1X36X1,5-
6
23 22 7 683 350
SLIDING GEAR, 6TH GEAR SHORT - Z=29 (from 08/02)-
23 00 2 330 254
SLIDING GEAR (to 08/02)Alternative for position 6-
23 22 7 683 374
SLIDING GEAR, 6TH GEAR LONG - Z=30 (from 08/02)Alternative for position 6-
7
23 21 2 330 206
OUTPUT SHAFT-
8
23 22 1 228 477
LOCK RING-
9
23 31 2 330 181
SUPPORT - 29X38X1,5-
10
23 21 7 675 166
SHIFT GEAR FOR 4TH. GEAR - EVO Z=30 (from 08/02)-
23 22 2 330 207
SHIFT GEAR FOR 4TH. GEAR (to 08/02)Alternative for position 10-
11
23 22 2 330 208
SHIFT GEAR FOR 3RD. GEAR (to 08/02)-
23 31 7 675 383
SHIFT GEAR FOR 3RD. GEAR - EVO (from 08/02)Alternative for position 11-
12
23 22 2 330 209
SLIDING GEAR, 5-SPEED - Z=27 (to 08/02)-
23 22 7 683 351
SLIDING GEAR, 5-SPEED - Z=28 (from 08/02)Alternative for position 12-
13
23 00 2 330 252
NEEDLE CAGE - 28X32X13-
14
23 21 2 330 211
SHIFT GEAR FOR 1ST. GEAR - Z=45 (to 08/02)-
23 21 7 675 167
SHIFT GEAR FOR 1ST. GEAR - EVO Z=53 (from 08/02)Alternative for position 14-
23 21 7 665 773
SHIFT GEAR FOR 1ST. GEAR SHORT - I=2,375Alternative for position 14-
15
23 00 2 330 253
SUPPORT - 25X36X1,5-
