R1150GS ADV (R21A) | Transmission

DRIVE SHAFT

Diagram #23_0747 | 35 parts

100%

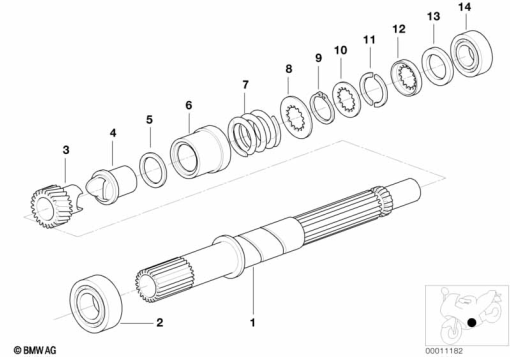

R1150GS ADV (R21A) DRIVE SHAFT exploded view parts diagram

Parts List (35)

#Part NumberDescriptionQty
1
23 21 7 651 172
DRIVE SHAFT-
GEA51172
INPUT SHAFT R11,1150,K12Alternative for position 1-
2
23 12 2 330 176
GROOVED BALL BEARING - 20X47X14-
3
23 21 2 333 047
GEAR WHEEL (to 08/02)-
23 21 7 683 463
GEAR WHEEL - EVO Z=18 (from 08/02)Alternative for position 3-
4
23 00 2 330 163
THRUST ADAPTER-
5
23 00 2 330 164
WAVE WASHER - 24,4X31,37X0,36-
6
23 00 2 330 165
SLEEVE - 45X23,7X44,5-
7
23 00 2 330 166
DIAPHRAGM SPRING - 7,55X39,7X36,8-
8
23 21 2 330 168
SUPPORT - 17X39,5X2,5-
9
23 00 2 330 167
LOCK RING - J41X1,75-
10
23 21 2 330 170
SHIM - 17X25X1,50-
23 21 2 330 171
SHIM - 17X25X1,70Alternative for position 10-
23 21 2 330 172
SHIM - 17X25X1,90Alternative for position 10-
23 21 2 330 173
SHIM - 17X25X2,10Alternative for position 10-
11
23 20 2 325 474
SECUIRNG ELEMENT-
12
23 00 2 330 174
SUPPORTING RING-
13
23 31 2 330 274
SHIM - 17X28X3,00-
23 31 2 333 121
SHIM - 17X28X3,02Alternative for position 13-
23 31 2 333 122
SHIM - 17X28X3,07Alternative for position 13-
23 31 2 330 278
SHIM - 17X28X3,10Alternative for position 13-
23 31 2 333 123
SHIM - 17X28X3,12Alternative for position 13-
23 31 2 330 279
SHIM - 17X28X3,15Alternative for position 13-
23 31 2 333 124
SHIM - 17X28X3,17Alternative for position 13-
23 00 2 330 275
SHIM - 17X28X3,20Alternative for position 13-
23 31 2 333 125
SHIM - 17X28X3,22Alternative for position 13-
23 31 2 330 280
SHIM - 17X28X3,25Alternative for position 13-
23 31 2 333 126
SHIM - 17X28X3,27Alternative for position 13-
23 31 2 330 281
SHIM - 17X28X3,30Alternative for position 13-
23 31 2 333 127
SHIM - 17X28X3,32Alternative for position 13-
23 31 2 330 282
SHIM - 17X28X3,35Alternative for position 13-
23 31 2 333 128
SHIM - 17X28X3,37Alternative for position 13-
23 00 2 330 276
SHIM - 17X28X3,40Alternative for position 13-
23 31 2 330 277
SHIM - 17X28X3,05Alternative for position 13-
14
23 12 2 330 175
GROOVED BALL BEARING - 17X35X10-
