R1150GS ADV (R21A) | Transmission

INTERMEDIATE SHAFT

Diagram #23_0749 | 30 parts

100%

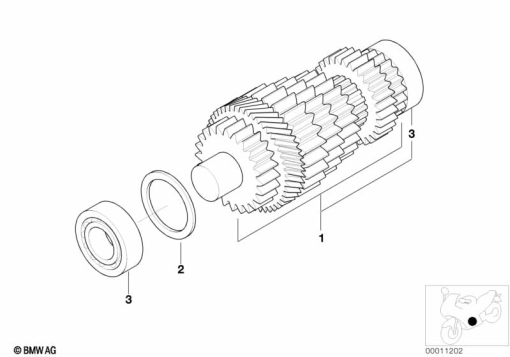

R1150GS ADV (R21A) INTERMEDIATE SHAFT exploded view parts diagram

Parts List (30)

#Part NumberDescriptionQty
1
23 21 2 330 177
INTERMEDIATE SHAFT (to 08/02)-
23 21 7 675 150
INTERMEDIATE SHAFT SPORT - 1.=26 / 6.=36 (from 08/02)Alternative for position 1-
23 21 7 665 749
INTERMEDIATE SHAFT ENDURO (to 08/02)Alternative for position 1-
23 21 7 675 155
INTERMEDIATE SHAFT ENDURO - 1.=16 / 6.=36 (from 08/02)Alternative for position 1-
2
23 31 2 330 189
SHIM - 25X38X1,50-
23 31 2 333 129
SHIM - 25X38X1,52Alternative for position 2-
23 31 2 330 190
SHIM - 25X38X1,55Alternative for position 2-
23 31 2 333 130
SHIM - 25X38X1,57Alternative for position 2-
23 31 2 330 191
SHIM - 25X38X1,60Alternative for position 2-
23 31 2 333 131
SHIM - 25X38X1,62Alternative for position 2-
23 31 2 330 192
SHIM - 25X38X1,65Alternative for position 2-
23 31 2 333 132
SHIM - 25X38X1,67Alternative for position 2-
23 31 2 330 193
SHIM - 25X38X1,70Alternative for position 2-
23 31 2 333 133
SHIM - 25X38X1,72Alternative for position 2-
23 31 2 330 194
SHIM - 25X38X1,75Alternative for position 2-
23 31 2 333 134
SHIM - 25X38X1,77Alternative for position 2-
23 31 2 330 195
SHIM - 25X38X1,80Alternative for position 2-
23 31 2 333 135
SHIM - 25X38X1,82Alternative for position 2-
23 31 2 330 196
SHIM - 25X38X1,85Alternative for position 2-
23 31 2 333 136
SHIM - 25X38X1,87Alternative for position 2-
23 31 2 330 197
SHIM - 25X38X1,90Alternative for position 2-
23 31 2 333 137
SHIM - 25X38X1,92Alternative for position 2-
23 31 2 330 198
SHIM - 25X38X1,95Alternative for position 2-
23 31 2 333 138
SHIM - 25X38X1,97Alternative for position 2-
23 31 2 330 199
SHIM - 25X38X2,00Alternative for position 2-
23 31 2 333 139
SHIM - 25X38X2,02Alternative for position 2-
23 31 2 330 200
SHIM - 25X38X2,05Alternative for position 2-
23 31 2 333 140
SHIM - 25X38X2,07Alternative for position 2-
23 31 2 330 201
SHIM - 25X38X2,10Alternative for position 2-
3
23 11 7 687 089
CLEAN BEARING GROOVED BALL BEARING - 25X52X15-
