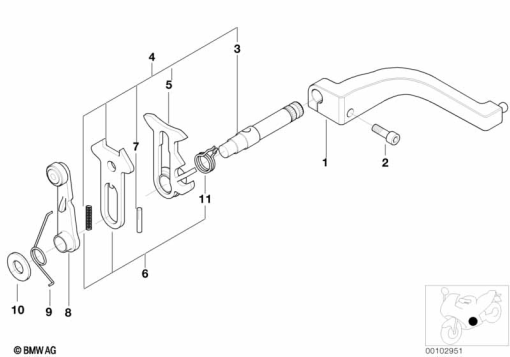

Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 23 00 7 653 994 | SHIFTING ARM | - | |
| 2 | 07 11 9 900 687 | FILLISTER-HEAD SCREW - M6X35 | - | |
| 4 | 23 31 7 675 374 | SELECTOR SHAFT CPL. - EVO | - | |
| 7 | 23 00 2 330 223 | SPIRAL TENSION PIN - 5X20 | - | |
| 8 | 23 00 2 330 229 | LOCKING LEVER | - | |
| 9 | 23 00 2 330 231 | RETAINER SPRING LOCKING LEVER - D=2,4 | - | |
| 10 | 23 31 2 330 232 | SHIM - 10X25X2,0 | - | |
23 31 2 330 233 | SHIM - 10X25X2,1Alternative for position 10 | - | ||
23 31 2 330 234 | SHIM - 10X25X2,2Alternative for position 10 | - | ||
23 31 2 330 235 | SHIM - 10X25X2,3Alternative for position 10 | - | ||
23 31 2 330 236 | SHIM - 10X25X2,4Alternative for position 10 | - | ||
23 31 2 330 237 | SHIM - 10X25X2,5Alternative for position 10 | - | ||
23 31 2 330 238 | SHIM - 10X25X2,6Alternative for position 10 | - | ||
23 31 2 330 239 | SHIM - 10X25X2,7Alternative for position 10 | - | ||
23 31 2 330 240 | SHIM - 10X25X2,8Alternative for position 10 | - | ||
23 31 2 330 241 | SHIM - 10X25X2,9Alternative for position 10 | - | ||
| 11 | 23 00 2 330 228 | RETAINER SPRING - D=3,2 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
