R1150GS ADV (R21A) | Steering

SINGLE PARTS, PARKING BRAKE FITTING

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #32_0930 | 20 parts

100%

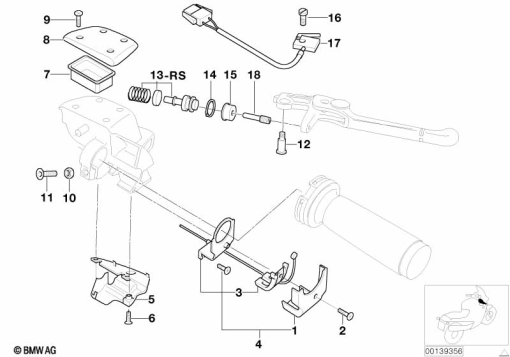

R1150GS ADV (R21A) SINGLE PARTS, PARKING BRAKE FITTING exploded view parts diagram

Parts List (20)

#	Part Number	Description	Qty
1	32 72 2 333 051	DEFLECTION COVER (to 12/04)	-
	32 72 7 691 989	DEFLECTION COVER - D=45MM (from 12/04)Alternative for position 1	-
2	32 72 2 333 052	COUNTERSUNK HEAD SCREW - M4X12	-
4	32 72 7 691 990	SET: REP.KIT ACCELERATOR CABLE DEFLECTION - D=45MM (from 12/04)	-
5	32 72 2 333 058	COVER, LOWER HANDLEBAR FITTINGS	-
6	32 72 2 333 059	COUNTERSUNK HEAD SCREW - M5X8	-
7	32 72 7 669 512	RUBBER BOOT	-
8	32 72 2 333 056	COVER, GRIP UNIT, BLACK	-
9	32 72 2 333 065	COUNTERSUNK HEAD SCREW - M4X16	-
10	32 72 2 311 141	0.01	-
11	32 72 2 333 061	COUNTERSUNK HEAD SCREW - M6X25 8.8	-
12	32 72 7 651 451	BEARING SCREW, HAND LEVER	-
13	32 72 7 658 464	SERVICE KIT, PISTON, ANODIZED - D=16MM (to 08/06)	-
14	32 72 2 333 062	LOCK RING - D=16MM	-
15	32 72 2 333 063	RUBBER BOOT	-
16	32 72 2 333 066	FILLISTER-HEAD SCREW - M2X12 4.8 (to 05/09)	-
	07 11 9 907 425	COUNTERSUNK SCREW - M2X12-8.8-MKAlternative for position 16	-
17	61 31 2 305 729	FRONT STOP LIGHT SWITCH	-
	61 31 2 305 977	STOP LIGHT SWITCH, FRONT, INTEGRAL ABSAlternative for position 17	-
18	32 72 2 333 064	GRUB SCREW	-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
