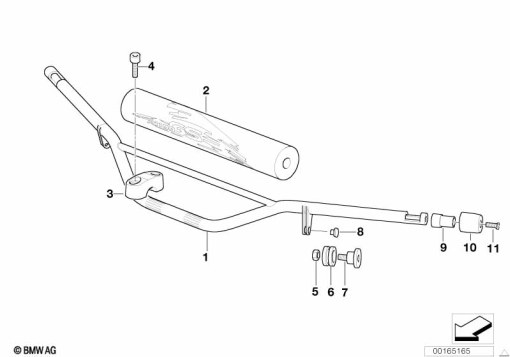

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32 71 2 333 244 | HIGH HANDLEBAR F HEATER HANDLE | - | |
| 2 | 46 63 7 652 222 | COVER, HANDLEBAR TUBE, BL-WHITE-BLUE | - | |
46 63 7 670 667 | COVER, HANDLEBAR TUBE, MANDARIN-GRAYAlternative for position 2 | - | ||
46 63 7 670 528 | COVER, HANDLEBAR CROSS TUBE, RED-GRAY - RT/GRAlternative for position 2 | - | ||
| 3 | 31 42 1 458 055 | CLAMP SUPPORT, BLACK, UPPER | - | |
| 4 | 07 12 9 903 768 | ISA SCREW - M8X35 A2-70 | - | |
| 5 | 07 11 9 906 520 | HEX NUT - M5-10-ZNNIV SI | - | |
| 6 | 32 71 2 331 838 | RUBBER GROMMET | - | |
| 7 | 32 71 2 331 839 | SCREW - M5X10 | - | |
| 9 | 32 71 2 330 134 | HANDLE TUBE COVER | - | |
| 10 | 32 71 2 313 766 | HANDLEBAR WEIGHT, BLACK | - | |
| 11 | 07 11 9 904 901 | COUNTERSUNK HEAD SCREW - M8X40 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
