R1150GS ADV (R21A) | Rear Axle & Suspension

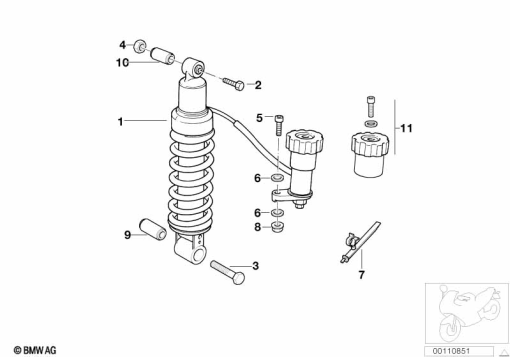

SPRING STRUT REAR HYDRAULIC
Diagram #33_1020 | 12 parts | 3 available in shop
100%
Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33 53 7 680 720 | SPRING STRUT, REAR | 1 | |
| 2 | 33 53 7 676 637 | ASA-BOLT - M10X1,25X60 | 1 | |
| 3 | 07 12 9 907 435 | ISA SCREW - M10X80-10.9-MK | 1 | |
| 4 | 07 11 9 907 049 | HEX NUT - M10X1.25-ZNNIV | 1 | |
| 5 | 07 12 9 904 477 | ISA SCREW - M8X25-10.9-ZNS3 | 1 | |
| 6 | 07 11 9 904 826 | Washer | 1 | |
| 6 | 07 11 9 931 697 | WASHER - 8,4 | 1 | |
| 7 | 13 31 1 707 705 | HOSE CLAMP | 1 | |
| 7 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | 1 | |
| 8 | 07 12 9 904 002 | SELF-LOCKING HEX NUT - M8-8-ZNS3 | 1 | |
| 9 | 33 53 7 652 714 | RUBBER MOUNTING | 1 | |
| 11 | 33 53 2 345 489 | HANDWHEEL FOR SPRING STRUT ADJUSTMENT | 1 |
