R1150GS ADV (R21A) | Rear Axle & Suspension

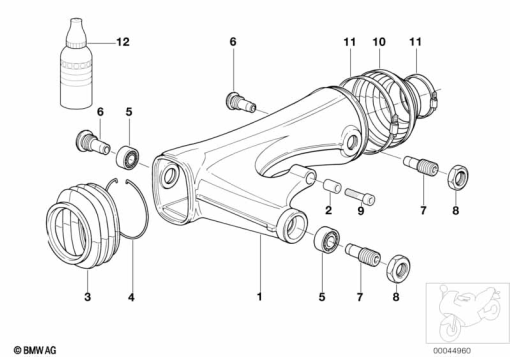

REAR WHEEL SWINGING ARM
Diagram #33_1019 | 12 parts | 3 available in shop
100%
Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33 17 2 338 126 | REAR WHEEL SWINGING ARM, SILVER | 1 | |
| 2 | 33 17 2 338 103 | FIT BUSH | 1 | |
| 3 | 33 17 2 332 993 | RUBBER BOOT | 1 | |
| 4 | 33 17 2 311 527 | SNAP RING | 1 | |
| 5 | 33 17 2 311 729 | TAPERED ROLLER BEARING - 17X40X13,25 | 1 | |
| 6 | 33 17 2 335 118 | PIVOT PIN | 1 | |
| 7 | 33 17 2 335 110 | PIVOT PIN | 1 | |
| 8 | 33 17 2 335 111 | COLLAR NUT - M24X1,25-ZNNIV | 1 | |
| 9 | 07 12 9 907 435 | ISA SCREW - M10X80-10.9-MK | 1 | |
| 10 | 33 17 1 452 504 | RUBBER BOOT | 1 | |
| 11 | 33 17 2 335 139 | CABLE TIE - L=450MM | 1 | |
| 12 | 33 17 2 331 095 | ADHESIVE LOCTITE 2701 - 10ML | 1 |
