R1150GS ADV (R21A) | Rear Axle & Suspension
REAR-AXLE-DRIVE

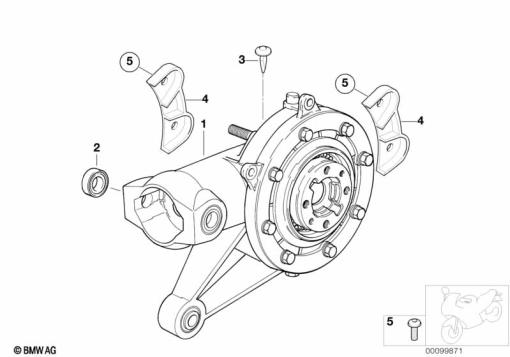

Diagram #33_1134 | 7 parts | 1 available in shop
100%
Parts List (7)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33 11 2 330 965 | FINAL DRIVE, SILVER/BLACK - I=31:11=2,82 | 1 | |
| 1 | 33 11 2 330 966 | FINAL DRIVE, ABS/SILVER/BLACK - I=31:11=2,82 | 1 | |
| 2 | 33 17 2 311 091 | NEEDLE BEARING - 10X32X17 | 1 | |
| 3 | 46 62 7 665 770 | COVERING CAP | 1 | |
| 4 | 46 62 7 665 786 | COVER | 1 | |
| 5 | 46 63 7 653 731 | OVAL-HEAD MACHINE SCREW, BLACK - M6X16 | 1 | |
| 5 | 46 63 7 659 459 | OVAL-HEAD SCREW WITH ANTI-ROTATION LOCK - M6X16 | 1 |
