R1150GS ADV (R21A) | Rear Axle & Suspension

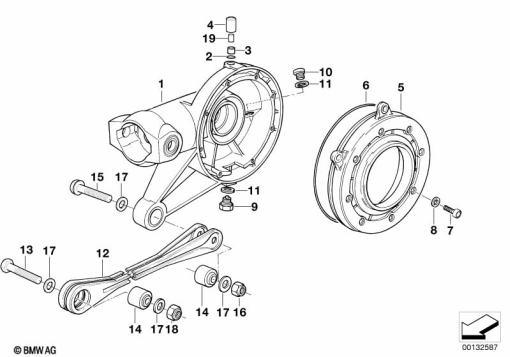

REAR-AXLE-DRIVE PARTS
Diagram #33_1018 | 23 parts | 1 available in shop
100%
Parts List (23)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33 11 2 314 707 | HOUSING SILVER | 1 | |
| 1 | 33 11 2 314 799 | HOUSING SILVER ABS | 1 | |
| 2 | 33 11 1 454 606 | O-RING | 1 | |
| 3 | 23 11 1 451 548 | SLEEVE (to 07/06) | 1 | |
| 3 | 33 75 8 544 490 | SLEEVE | 1 | |
| 3 | 33 75 8 544 490 | SLEEVE | 1 | |
| 4 | 33 11 1 451 988 | 33 11 1 451 988 | 1 | |
| 5 | 33 11 2 330 035 | HOUSING COVER BLACK | 1 | |
| 5 | 33 11 2 330 038 | HOUSING COVER BLACK ABS | 1 | |
| 6 | 33 11 1 241 257 | O-RING - 171,1X2,62 | 1 | |
| 7 | 07 11 9 902 646 | FILLISTER-HEAD SCREW - M10X30 | 1 | |
| 8 | 07 11 9 931 640 | WASHER - 10,5 | 1 | |
| 9 | 11 13 1 744 329 | SCREW PLUG, MAGNETIC - M14X1,5 | 1 | |
| 10 | 33 11 1 451 349 | SCREW PLUG - M14X1,5-ZNS | 1 | |
| 11 | 07 11 9 963 200 | GASKET RING - A14X18-AL | 1 | |
| 12 | 33 17 2 314 179 | SILVER ROD - L=365MM | 1 | |
| 13 | 31 42 2 332 107 | SCREW | 1 | |
| 14 | 33 35 8 382 788 | RUBBER MOUNTING | 1 | |
| 15 | 07 11 9 905 161 | HEX BOLT - M10X55-10.9ZNS3 | 1 | |
| 16 | 07 12 9 964 672 | SELF-LOCKING HEX NUT - M10 | 1 | |
| 17 | 07 11 9 904 168 | WASHER - 10-200 HV-ZNNIV | 1 | |
| 18 | 07 11 9 907 049 | HEX NUT - M10X1.25-ZNNIV | 1 | |
| 19 | 33 11 8 560 809 | FILTER | 1 |
