R1150GS ADV (R21A)
Frame, Fairing, Cases
TOP CASE
R1150GS ADV (R21A) | Frame, Fairing, Cases
TOP CASE

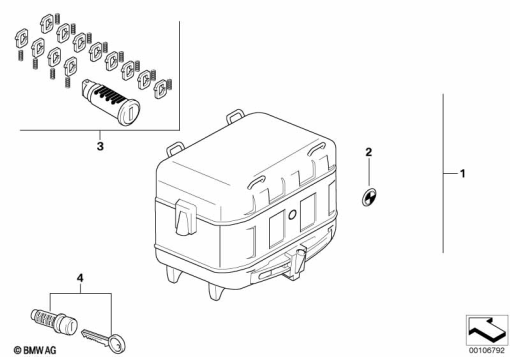

Diagram #46_0780 | 4 parts
34 diagrams in Frame, Fairing, Cases
100%
Download
Parts List (4)
#
Part Number
Description
Qty
1
71 60 7 669 719
ALUMINUM TOPCASE
-
2
51 14 2 308 800
BADGE - D=21MM
-
3
71 60 7 658 463
SET: REP.KIT F LOCK CYLINDER
-
4
51 25 7 660 863
SET OF LOCKS TOP CASE
-
