R1150GS ADV (R21A) | Frame, Fairing, Cases

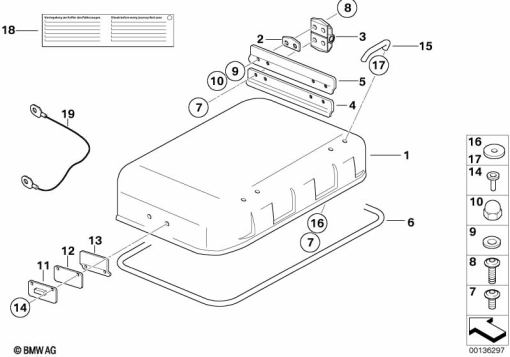

COVER F TOP CASE
Diagram #46_0781 | 19 parts | 1 available in shop
100%
Parts List (19)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 71 60 7 664 534 | COVER, RIGHT, ALUMINIUM CASE/TOP CASE | 1 | |
| 2 | 71 60 7 668 676 | BASE | 1 | |
| 3 | 71 60 7 664 529 | HINGE | 1 | |
| 4 | 71 60 7 668 677 | REINFORCEMENT PLATE, BOTTOM | 1 | |
| 5 | 71 60 7 668 678 | REINFORCEMENT PLATE, TOP | 1 | |
| 6 | 71 60 7 664 537 | GASKET | 1 | |
| 7 | 71 60 7 672 260 | OVAL HEAD SCREW - M5X12 | 1 | |
| 8 | 71 60 7 672 261 | OVAL HEAD SCREW - M5X16 | 1 | |
| 9 | 71 60 7 672 255 | WASHER - A5,3 | 1 | |
| 10 | 71 60 7 672 266 | CAP NUT - M5 | 1 | |
| 11 | 46 54 2 303 642 | HOOK | 1 | |
| 12 | 71 60 7 668 674 | BASE | 1 | |
| 13 | 71 60 7 668 675 | REINFORCEMENT PLATE | 1 | |
| 14 | 71 60 7 672 264 | BLIND RIVET - 3,2X17 | 1 | |
| 15 | 71 60 7 664 535 | FIXING BOW | 1 | |
| 16 | 07 11 9 936 406 | WASHER - 5,3 | 1 | |
| 17 | 71 60 7 668 673 | WASHER | 1 | |
| 18 | 71 60 7 668 679 | LABEL | 1 | |
| 19 | 71 60 7 688 306 | SET: HOLDING STRAP KIT, ALUMINIUM TOP-CASE - L=493MM | 1 |
