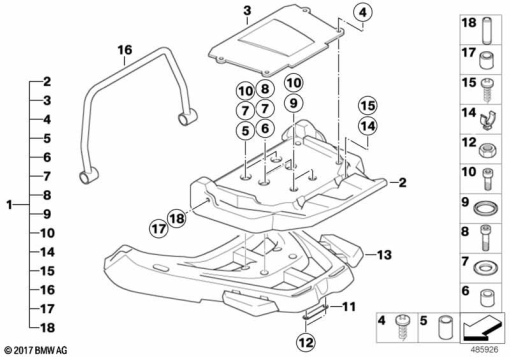

Parts List (18)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 71 60 7 664 552 | SET OF TOP-CASE BRACKETS | 1 | |
| 2 | 71 60 7 664 553 | BRACKET F TOP CASE | 1 | |
| 3 | 71 60 7 668 691 | CARRIER PLATE | 1 | |
| 4 | 46 54 7 693 121 | FILLISTER HEAD SCREW - K50X12 | 1 | |
| 5 | 71 60 7 668 688 | BUSH - 7,6X15 | 1 | |
| 6 | 71 60 7 668 689 | BUSH - 7,6X12 | 1 | |
| 7 | 71 60 7 669 716 | WASHER - A6,4 | 1 | |
| 8 | 71 60 7 672 277 | FILLISTER-HEAD SCREW - M6X65 | 1 | |
| 9 | 71 60 7 672 258 | WASHER - 6,4 | 1 | |
| 10 | 71 60 7 672 278 | FILLISTER-HEAD SCREW - M6X45-A2-70 | 1 | |
| 11 | 71 60 7 668 690 | MOUNTING PANEL - 7,6X15 | 1 | |
| 12 | 71 60 7 672 282 | HEX NUT - M6 | 1 | |
| 13 | 46 54 7 664 391 | LUGGAGE GRID - ROHTEIL / BLANK | 1 | |
| 14 | 71 60 7 668 687 | CLIP | 1 | |
| 15 | 71 60 7 672 271 | SELF TAPPING SCREW - 30X12 | 1 | |
| 16 | 71 60 7 664 555 | HINGED BRACKET | 1 | |
| 17 | 71 60 7 672 283 | COLLAR BUSH | 1 | |
| 18 | 71 60 7 672 284 | 0.03 | 1 |
