R1150GS ADV (R21A) | Frame, Fairing, Cases
FOOTRESTS REAR FOR ALUMINIUM CASE

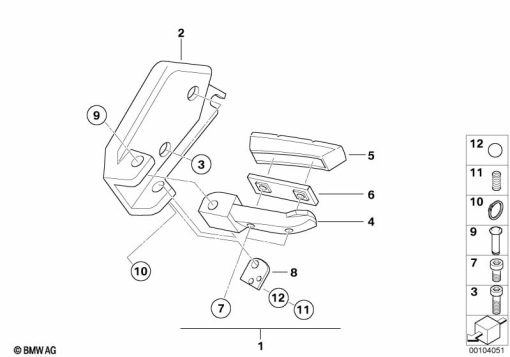

Diagram #46_0778 | 21 parts
100%
Parts List (21)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 71 60 7 668 666 | SET: SET FOOTREST PLATE F ALUMIN. CASE | - | |
| 2 | 71 60 7 668 671 | FOOTREST PLATE, LEFT | - | |
71 60 7 668 672 | FOOTPEG PLATE RIGHTAlternative for position 2 | - | ||
| 3 | 71 60 7 673 537 | FILLISTER-HEAD SCREW - M8X25 | - | |
| 4 | 07 11 9 904 826 | Washer | - | |
07 11 9 931 697 | WASHER - 8,4Alternative for position 4 | - | ||
| - | 71 60 7 673 538 | FILLISTER-HEAD SCREW - M8X30 | - | |
| - | 07 11 9 904 826 | Washer | - | |
| - | 07 11 9 931 697 | WASHER - 8,4 | - | |
| 4 | 46 71 7 654 385 | FOOTREST, REAR LEFT - SILVER | - | |
46 71 7 654 386 | FOOTREST, REAR RIGHT - SILVERAlternative for position 4 | - | ||
| 5 | 46 71 7 654 384 | FOOTREST RUBBER | - | |
| 6 | 46 71 2 335 185 | BRACKET | - | |
| 7 | 07 11 9 902 859 | FILLISTER-HEAD SCREW - M5X12-ZNNIV SI | - | |
| 8 | 46 71 2 335 879 | STOP PLATE | - | |
| 9 | 46 71 7 654 258 | PIN - 8X45 | - | |
| 10 | 07 11 9 901 545 | SECURING CLIP | - | |
07 11 9 909 941 | CIRCLIPAlternative for position 10 | - | ||
07 11 9 909 941 | CIRCLIPAlternative for position 10 | - | ||
| 11 | 46 71 7 654 287 | COMPRESSION SPRING | - | |
| 12 | 07 11 9 986 289 | BALL - 6,35 | - |
