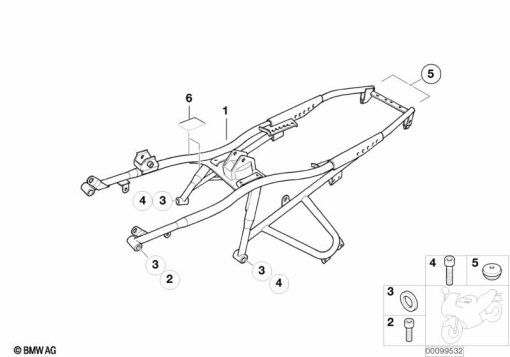

Parts List (8)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 51 7 661 423 | REAR FRAME | - | |
| 2 | 07 12 9 903 801 | ISA SCREW - M10X40-8.8-ZNS3 | - | |
07 11 9 901 107 | FILLISTER-HEAD SCREW - M10X60-8.8Alternative for position 2 | - | ||
| 3 | 07 11 9 906 132 | WASHER - 10-200 HV-A2 | - | |
| 4 | 07 12 9 905 166 | ISA SCREW - M10X45 | - | |
| - | 83 19 2 210 339 | THREAD LOCK, MEDIUM-STRENGTH - 10ML | - | |
| 5 | 51 71 1 130 780 | BLIND PLUG | - | |
| 6 | 46 51 2 330 634 | PROTECTION FOIL - 25X30 | - |
