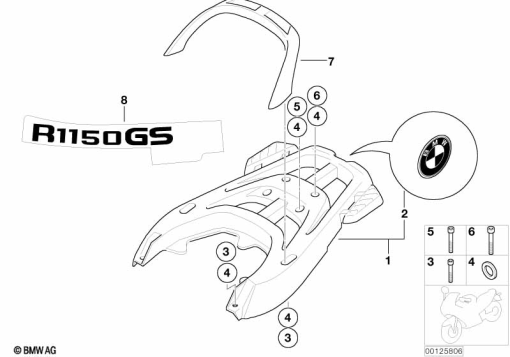

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 54 7 664 391 | LUGGAGE GRID - ROHTEIL / BLANK | - | |
| 2 | 51 14 2 308 800 | BADGE - D=21MM | - | |
| 3 | 07 12 9 901 130 | ISA SCREW - M6X20-8.8-ZNNIV | - | |
| 4 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | - | |
| 5 | 07 12 9 903 807 | ISA SCREW - M6X25-8.8-ZNS3 | - | |
| 6 | 07 11 9 919 930 | FILLISTER-HEAD SCREW - M6X50-8.8-ZNS | - | |
| 7 | 46 54 7 664 392 | HANDLE | - | |
| 8 | 46 54 7 652 219 | STICKER LEFT - BLUE/BLACK | - | |
46 54 7 652 220 | STICKER RIGHT - BLUE/BLACKAlternative for position 8 | - | ||
46 54 7 671 381 | STICKER LEFT - MANDARIN/SWAlternative for position 8 | - | ||
46 54 7 671 382 | STICKER RIGHT - MANDARIN/SWAlternative for position 8 | - | ||
46 54 7 671 379 | STICKER LEFT - RED/SWAlternative for position 8 | - | ||
46 54 7 671 380 | STICKER RIGHT - RED/SWAlternative for position 8 | - |
