R1150GS ADV (R21A) | Frame, Fairing, Cases
CENTER STAND

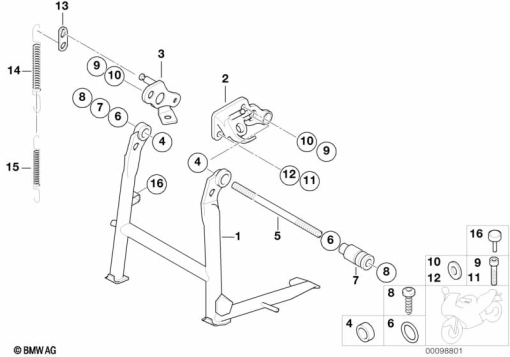

Diagram #46_0762 | 17 parts | 2 available in shop
100%
Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 52 7 665 499 | CENTER STAND | 1 | |
| 2 | 46 53 7 666 485 | BRACKET LEFT | 1 | |
| 3 | 46 52 7 666 483 | MOUNTING PLATE RIGHT | 1 | |
| 4 | 46 52 2 330 367 | SPACER LEFT - 2,5 | 1 | |
| 5 | 07 11 9 910 283 | STUD BOLT - M8X105 | 1 | |
| 6 | 07 11 9 900 500 | O-RING - 17X1,8 | 1 | |
| 7 | 46 52 2 314 427 | BOLT | 1 | |
| 8 | 46 52 2 325 159 | FILLISTER HEAD SCREW - M8X16 | 1 | |
| 9 | 07 11 9 900 557 | FILLISTER-HEAD SCREW - M12X30 | 1 | |
| 10 | 07 11 9 906 063 | WASHER - 12-200 HV-ZNS3 | 1 | |
| 11 | 07 12 9 904 477 | ISA SCREW - M8X25-10.9-ZNS3 | 1 | |
| 12 | 07 11 9 904 826 | Washer | 1 | |
| 12 | 07 11 9 931 697 | WASHER - 8,4 | 1 | |
| 13 | 46 52 7 661 657 | SHACKLE | 1 | |
| 14 | 46 52 2 345 456 | TENSION SPRING | 1 | |
| 15 | 46 53 2 345 275 | TENSION SPRING | 1 | |
| 16 | 46 52 2 335 616 | BUMP STOP - H=20 | 1 |
