R1150GS ADV (R21A) | Frame, Fairing, Cases
SET CASE HOLDER

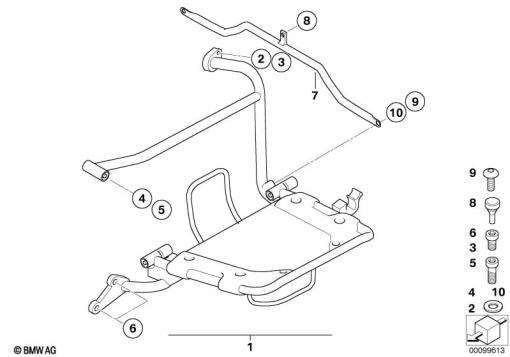

Diagram #46_0768 | 12 parts | 1 available in shop
100%
Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 71 60 7 664 556 | CARRIER SYSTEM FOR ALUMINUM CASE | 1 | |
| 1 | 71 60 7 668 666 | SET: SET FOOTREST PLATE F ALUMIN. CASE | 1 | |
| 2 | 71 60 7 672 258 | WASHER - 6,4 | 1 | |
| 3 | 71 60 7 672 289 | FILLISTER-HEAD SCREW - M6X20 | 1 | |
| 4 | 71 60 7 672 259 | WASHER - 8,4 | 1 | |
| 5 | 71 60 7 672 288 | FILLISTER-HEAD SCREW - M8X35 | 1 | |
| 6 | 71 60 7 673 537 | FILLISTER-HEAD SCREW - M8X25 | 1 | |
| 6 | 71 60 7 673 538 | FILLISTER-HEAD SCREW - M8X30 | 1 | |
| 7 | 71 60 7 668 699 | CROSS BRACE | 1 | |
| 8 | 52 53 1 230 319 | RUBBER SUPPORT - D=18MM | 1 | |
| 9 | 71 60 7 672 275 | FILLISTER HEAD SCREW - M8X16 | 1 | |
| 10 | 71 60 7 672 259 | WASHER - 8,4 | 1 |
