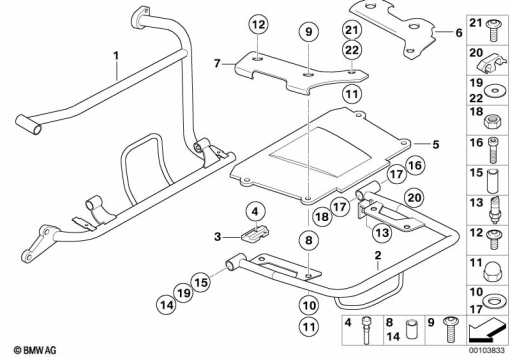

Parts List (24)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 71 60 7 664 559 | BASIS BRACKET LEFT | - | |
71 60 7 664 560 | BASIS BRACKET RIGHTAlternative for position 1 | - | ||
| 2 | 71 60 7 664 561 | BAR LEFT | - | |
71 60 7 668 700 | BAR RIGHTAlternative for position 2 | - | ||
| 3 | 71 60 7 668 692 | 0.03 | - | |
| 4 | 46 63 2 309 923 | BUMP STOP - H=5,5MM | - | |
| 5 | 71 60 7 664 567 | CARRIER PLATE | - | |
| 6 | 71 60 7 664 563 | CLAMPING LEFT | - | |
| 7 | 71 60 7 664 564 | CLAMPING RIGHT | - | |
| 8 | 71 60 7 668 694 | SPACER SLEEVE | - | |
| 9 | 71 60 7 672 262 | OVAL HEAD SCREW - M5X25 | - | |
| 10 | 07 11 9 936 406 | WASHER - 5,3 | - | |
| 11 | 71 60 7 672 266 | CAP NUT - M5 | - | |
| 12 | 71 60 7 672 263 | OVAL HEAD SCREW - M5X10 | - | |
| 13 | 71 60 7 672 285 | PIN WITH NUT | - | |
| 14 | 71 60 7 672 638 | BUSH | - | |
| 15 | 71 60 7 668 695 | BUSHING | - | |
| 16 | 71 60 7 672 287 | CYLINDER HEAD BOLT - M6X55 | - | |
| 17 | 71 60 7 669 716 | WASHER - A6,4 | - | |
| 18 | 71 60 7 672 282 | HEX NUT - M6 | - | |
| 19 | 71 60 7 668 696 | WASHER - 20X12X2 | - | |
| 20 | 71 60 7 668 697 | CLIP | - | |
| 21 | 71 60 7 672 261 | OVAL HEAD SCREW - M5X16 | - | |
| 22 | 71 60 7 672 255 | WASHER - A5,3 | - |
