R1150GS ADV (R21A) | Frame, Fairing, Cases

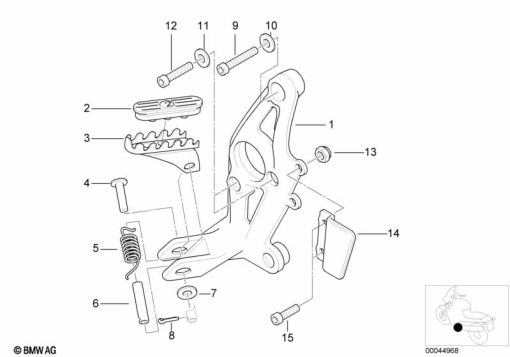

FOOTPEG PLATE/FRONT FOOTPEG
Diagram #46_0593 | 20 parts | 6 available in shop
100%
Parts List (20)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 71 2 335 597 | FOOTREST PLATE, LEFT | 1 | |
| 1 | 46 71 2 335 598 | FOOTPEG PLATE RIGHT | 1 | |
| 2 | 46 71 1 242 109 | FOOTREST RUBBER | 1 | |
| 3 | 46 71 7 729 281 | FOOTREST, LEFT | 1 | |
| 3 | 46 71 7 729 282 | FOOTREST, RIGHT | 1 | |
| 4 | 07 11 9 900 188 | PIN - 8X50-ZNS | 1 | |
| 5 | 46 71 1 242 020 | SPRING | 1 | |
| 6 | 46 71 1 242 019 | SPACER TUBE | 1 | |
| 7 | 07 11 9 904 826 | Washer | 1 | |
| 7 | 07 11 9 931 697 | WASHER - 8,4 | 1 | |
| 8 | 07 11 9 905 230 | SPLIT PIN - 2X16 | 1 | |
| 9 | 07 12 9 905 166 | ISA SCREW - M10X45 | 1 | |
| – | 83 19 2 210 339 | THREAD LOCK, MEDIUM-STRENGTH - 10ML | 1 | |
| 10 | 07 11 9 906 132 | WASHER - 10-200 HV-A2 | 1 | |
| 11 | 07 11 9 906 667 | WASHER - D=8MM | 1 | |
| 12 | 07 11 9 904 375 | FILLISTER-HEAD SCREW - M8X20-8.8-ZNS3 | 1 | |
| 12 | 07 11 9 902 984 | FILLISTER-HEAD SCREW - M8X40-8.8-ZNS3 | 1 | |
| 13 | 07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SI | 1 | |
| 14 | 46 71 7 664 451 | COVERING RIGHT | 1 | |
| 15 | 07 12 9 903 807 | ISA SCREW - M6X25-8.8-ZNS3 | 1 |
