R1150GS ADV (R21A) | Frame, Fairing, Cases

COVERING FUEL TANK

Diagram #46_0590 | 3 parts

100%

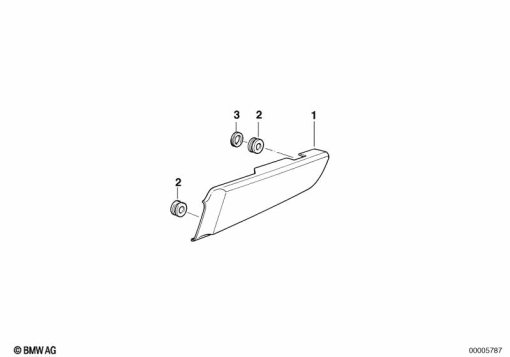

R1150GS ADV (R21A) COVERING FUEL TANK exploded view parts diagram

Parts List (3)

#Part NumberDescriptionQty
1
46 63 7 671 732
COVERING RIGHT1
2
46 63 1 451 277
RUBBER GROMMET1
3
46 63 1 451 278
INSERT1
