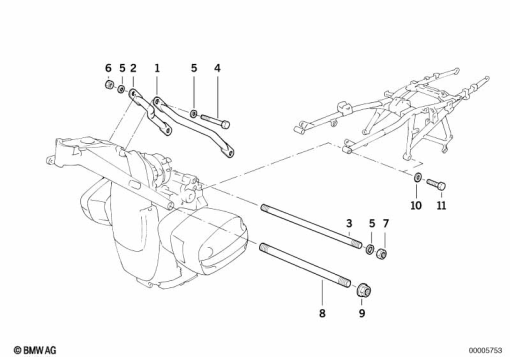

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 51 2 314 271 | ROD LEFT | - | |
| 2 | 46 51 2 314 322 | ROD RIGHT | - | |
| 3 | 46 51 7 654 593 | PIN - M10, L=241MM | - | |
| 4 | 07 11 9 900 556 | HEX BOLT - M10X125-10.9 | - | |
| 5 | 07 11 9 904 168 | WASHER - 10-200 HV-ZNNIV | - | |
| 7 | 07 11 9 907 088 | HEX NUT - M10 | - | |
| 8 | 46 51 2 314 567 | PIN - 10.9 | - | |
| 9 | 07 11 9 901 589 | HEX NUT - M12-10-ZNS3 | - | |
| 11 | 07 12 9 903 801 | ISA SCREW - M10X40-8.8-ZNS3 | - | |
07 12 9 905 166 | ISA SCREW - M10X45Alternative for position 11 | - | ||
| - | 83 19 2 210 339 | THREAD LOCK, MEDIUM-STRENGTH - 10ML | - | |
| 11 | 07 11 9 901 107 | FILLISTER-HEAD SCREW - M10X60-8.8 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
