R1150GS ADV (R21A) | Frame, Fairing, Cases

FAIRING BRACKET

Diagram #46_0602 | 4 parts

100%

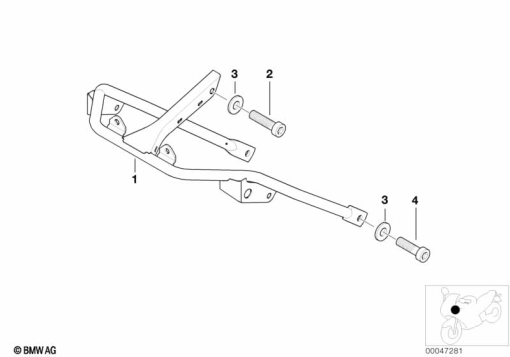

R1150GS ADV (R21A) FAIRING BRACKET exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
46 63 2 328 688
FAIRING BRACKET-
2
07 11 9 901 027
FILLISTER-HEAD SCREW - M8X35 ZNS-
3
13 51 2 243 795
WASHER - 18X8,4X3-
4
46 63 2 313 246
FILLISTER-HEAD SCREW - M8X25-
