R1150GS ADV (R21A) | Frame, Fairing, Cases

FRONT PANEL CARRIER

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #46_0603 | 4 parts

100%

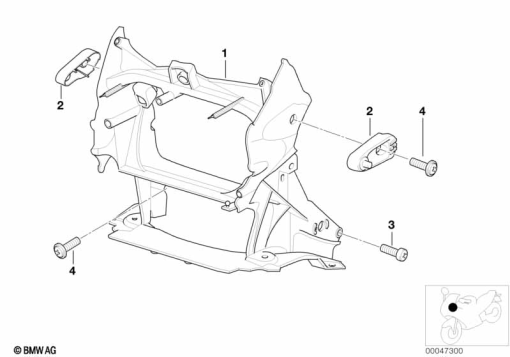

R1150GS ADV (R21A) FRONT PANEL CARRIER exploded view parts diagram

Parts List (4)

#	Part Number	Description	Qty
1	46 63 2 328 866	FRONT PANEL CARRIER	-
3	46 63 7 653 731	OVAL-HEAD MACHINE SCREW, BLACK - M6X16	-
	46 63 7 659 459	OVAL-HEAD SCREW WITH ANTI-ROTATION LOCK - M6X16Alternative for position 3	-
4	46 63 7 653 732	FILLISTER HEAD SCREW - M6X25	-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
