R1150GS ADV (R21A) | Frame, Fairing, Cases

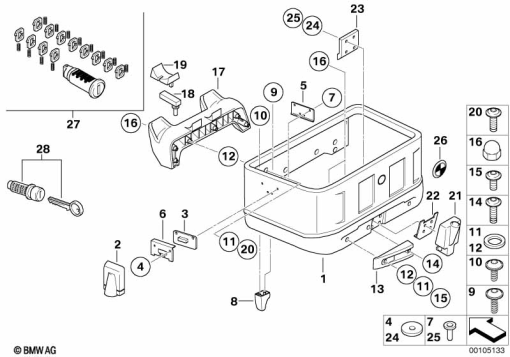

BOTTOM PART F TOP CASE
Diagram #46_0782 | 29 parts | 2 available in shop
100%
Parts List (29)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 71 60 7 668 685 | BOTTOM PART | 1 | |
| 2 | 71 60 7 654 346 | CAP LOCK WITHOUT CYLINDER | 1 | |
| 3 | 46 54 2 303 642 | HOOK | 1 | |
| 4 | 71 60 7 673 533 | WASHER-GASKET | 1 | |
| 5 | 71 60 7 668 681 | REINFORCEMENT PLATE | 1 | |
| 6 | 71 60 7 668 680 | BASE | 1 | |
| 7 | 71 60 7 673 534 | BLIND RIVET - 3,2X11,5 | 1 | |
| 8 | 71 60 7 664 540 | SUPPORT | 1 | |
| 9 | 71 60 7 672 269 | SELF TAPPING SCREW - 50X25 | 1 | |
| 10 | 46 54 7 693 121 | FILLISTER HEAD SCREW - K50X12 | 1 | |
| 11 | 71 60 7 668 673 | WASHER | 1 | |
| 12 | 07 11 9 936 406 | WASHER - 5,3 | 1 | |
| 13 | 71 60 7 672 501 | RUBBER STRIP LEFT | 1 | |
| 13 | 71 60 7 672 502 | RUBBER STRIP RIGHT | 1 | |
| 14 | 71 60 7 672 274 | FILLISTER HEAD SCREW - M5X22 | 1 | |
| 15 | 71 60 7 672 273 | FILLISTER HEAD SCREW - M5X14 | 1 | |
| 16 | 71 60 7 672 266 | CAP NUT - M5 | 1 | |
| 17 | 71 60 7 664 543 | MOUNTING PLATE | 1 | |
| 18 | 71 60 7 668 684 | 71 60 7 668 684 | 2 | |
| 19 | 71 60 7 673 671 | 0.01 | 1 | |
| 20 | 71 60 7 672 276 | FILLISTER HEAD SCREW - M5X16 | 1 | |
| 21 | 71 60 7 664 539 | CASE SUSPENSION CATCH | 1 | |
| 22 | 71 60 7 668 682 | BASE | 1 | |
| 23 | 71 60 7 668 683 | BASE | 1 | |
| 24 | 71 60 7 672 256 | WASHER | 1 | |
| 25 | 71 60 7 672 265 | BLIND RIVET - 3,2X18,5 | 1 | |
| 26 | 51 14 2 308 800 | BADGE - D=21MM | 1 | |
| 27 | 71 60 7 658 463 | SET: REP.KIT F LOCK CYLINDER | 1 | |
| 28 | 51 25 7 660 863 | SET OF LOCKS TOP CASE | 1 |
