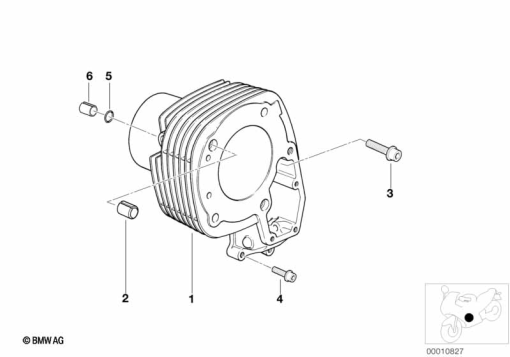

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 11 7 672 631 | LEFT CYLINDER, SILVER - A/B H=80,65 (from 12/02) | - | |
11 11 7 672 632 | RIGHT CYLINDER, SILVER - A/B H=80,65 (from 12/02)Alternative for position 1 | - | ||
| 2 | 07 11 9 942 074 | DOWEL PIN - 6M6X14 (from 12/02) | - | |
11 12 1 726 241 | DOWEL - D=12,5MM (from 12/02)Alternative for position 2 | - | ||
| 3 | 07 11 9 919 820 | FILLISTER HEAD WITH WASHER - M8X55-Z3-8.8 ZN (from 12/02) | - | |
07 11 9 920 137 | FILLISTER HEAD WITH WASHER - M8X30-Z3-8.8-ZN (from 12/02)Alternative for position 3 | - | ||
| 4 | 07 11 9 906 058 | FILLISTER HEAD WITH WASHER - M6X35-ZNNIV SI (from 12/02) | - | |
11 11 7 658 018 | FILLISTER-HEAD SCREW WITH COATING - M6X35-Z3-8.8-ZN (from 12/02)Alternative for position 4 | - | ||
| 5 | 11 11 1 342 242 | O-RING - 10,5X1,5 (from 12/02) | - | |
| 6 | 11 12 1 726 238 | DOWEL - D=10,5MM (from 12/02) | - |
