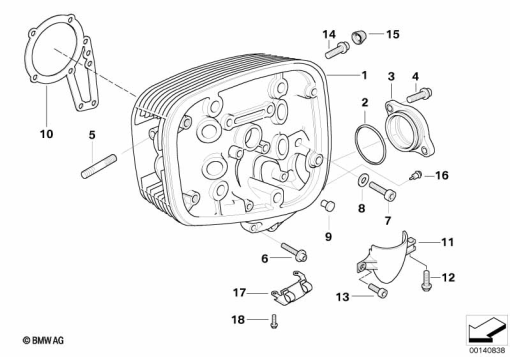

Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 12 7 670 731 | CYLINDER HEAD LEFT - SILVER (from 12/02) | 1 | |
| 1 | 11 12 7 670 732 | CYLINDER HEAD RIGHT - SILVER (from 12/02) | 1 | |
| 2 | 11 12 1 341 784 | O-RING (from 12/02) | 1 | |
| 3 | 11 12 1 341 873 | COVER (from 12/02) | 1 | |
| 4 | 46 51 2 311 713 | FILLISTER HEAD WITH WASHER - M6X16 (from 12/02) | 1 | |
| 5 | 07 12 9 903 964 | STUD BOLT - M8X40 (from 12/02) | 1 | |
| 7 | 11 12 1 342 244 | FILLISTER HEAD WITH WASHER - M10X70 (from 12/02) | 1 | |
| 8 | 11 12 1 464 026 | WASHER - 10,5X20X3 (from 12/02) | 1 | |
| 10 | 11 12 7 672 598 | CYL. HEAD GASKET, 3 COMPONENTS (from 12/02) | 1 | |
| 14 | 07 12 9 903 804 | ISA SCREW - M6X10-8.8-ZNS3 (from 12/02) | 1 | |
| 15 | 61 13 7 678 214 | CAP (from 12/02) | 1 | |
| 16 | 61 13 7 671 354 | EARTH PIN - M6X10 (from 08/03) | 1 | |
| 17 | 11 11 7 672 355 | HOLDING STRAP LEFT (from 12/02) | 1 | |
| 17 | 11 11 7 672 356 | RETAINING BRACKET, RIGHT (from 12/02) | 1 | |
| 18 | 07 11 9 906 058 | FILLISTER HEAD WITH WASHER - M6X35-ZNNIV SI (from 10/02) | 1 |
