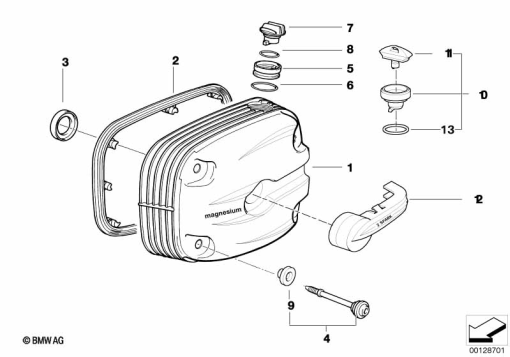

Parts List (16)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 12 7 672 587 | CYLINDER HEAD COVER DOUBLE-IGNITION,LEFT - FERRO (from 12/02) | - | |
11 12 7 672 588 | CYLINDER HEAD COVER DOUBLE-IGNITION,RIG. - FERRO (from 12/02)Alternative for position 1 | - | ||
| 2 | 11 12 1 341 708 | EXTERIOR GASKET (from 12/02) | - | |
| 3 | 11 14 7 668 216 | INTERIOR GASKET (from 12/02) | - | |
| 4 | 11 12 7 654 223 | INNER HEX BOLT WITH BUSH (from 12/02) | - | |
11 12 7 658 634 | ISA SCREW WITH BUSH - ZNS3 (from 12/02)Alternative for position 4 | - | ||
| 5 | 11 14 7 659 578 | FILLER PIPE (from 12/02) | - | |
| 6 | 11 14 1 340 901 | O-RING (from 12/02) | - | |
| 7 | 11 14 1 340 900 | OIL COVER LID (from 12/02) | - | |
| 8 | 11 14 1 340 902 | O-RING - 18X4 (from 12/02) | - | |
| 9 | 11 12 7 654 978 | RUBBER BUSH (from 12/02) | - | |
| 10 | 71 60 7 674 505 | SET: OIL COVER LID, LOCKABLE - CHROM (from 12/02) | - | |
| 11 | 71 60 7 674 506 | KEY (from 12/02) | - | |
| 12 | 11 14 7 675 731 | SPARK PLUG COVER, LEFT - 2SPARK / WS - ALUMINUM (from 12/02) | - | |
11 14 7 675 732 | SPARK PLUG COVER, RIGHT - 2SPARK / WS - ALUMINUM (from 12/02)Alternative for position 12 | - | ||
| 13 | 71 60 7 685 183 | O-RING - 17X4,5 (from 12/02) | - |
