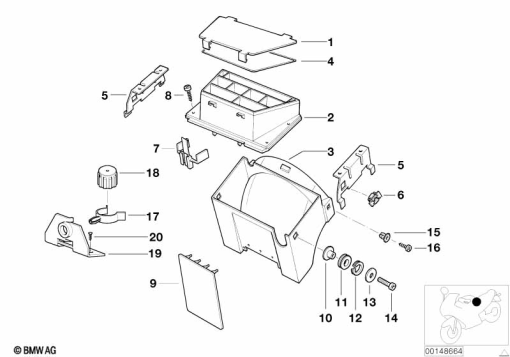

Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61 13 2 306 367 | FUSE BOX COVER | 1 | |
| 2 | 61 13 2 306 380 | FUSE BOX | 1 | |
| 3 | 61 13 2 306 222 | WIRING BOX | 1 | |
| 4 | 65 61 2 300 307 | GASKET - 1230MM | 1 | |
| 7 | 61 13 2 306 213 | ADAPTER | 1 | |
| 8 | 07 11 9 907 802 | FILLISTER HEAD SELF-TAPPING SCREW - ST3,5X19-Z1 | 1 | |
| 9 | 61 13 2 306 227 | MUDGUARD | 1 | |
| 10 | 46 63 1 451 275 | BUSH - 25X6.4X10-ZNS3 | 1 | |
| 11 | 46 63 1 451 277 | RUBBER GROMMET | 1 | |
| 12 | 46 63 1 451 278 | INSERT | 1 | |
| 13 | 07 11 9 903 791 | WASHER - A6,4-200HV-ZNS3 | 1 | |
| 13 | 07 11 9 936 426 | FLAT WASHER | 1 | |
| 14 | 61 13 2 351 546 | FILLISTER-HEAD SCREW - M6X25 | 1 | |
| 17 | 11 53 1 726 298 | DIAGNOSIS PLUG BRACKET | 1 | |
| 18 | 61 13 2 306 793 | 0.02 | 1 | |
| 19 | 61 13 2 350 633 | DIAGNOSIS PLUG BRACKET | 1 | |
| 20 | 07 12 9 902 322 | SCREW FOR THERMOPLASTIC PLASTICS - TS4X16 | 1 |
