R1150GS ADV (R21A) | Electrical System

COMBINATION SWITCH AT HANDLEBAR

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

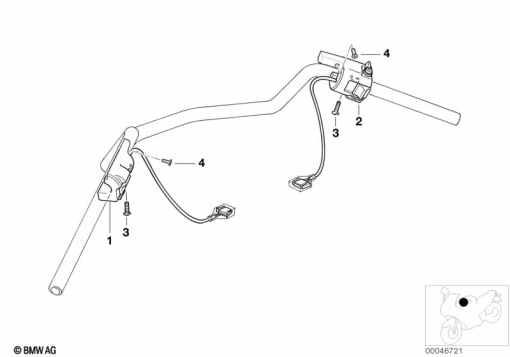

Diagram #61_1669 | 17 parts

100%

Parts List (17)

#	Part Number	Description	Qty
1	61 31 7 709 735	COMBINATION SWITCH LEFT (to 12/02)	1
2	61 31 7 710 220	COMBINATION SWITCH RIGHT - ABS (to 12/02)	1
2	61 31 7 710 206	COMBI SWITCH RIGHT, CONTINUOUS LIGHT (to 12/02)	1
2	61 31 7 710 218	COMBI SWITCH RGHT,HTD HNDGRIP/CONT.LIGHT (to 12/02)	1
2	61 31 7 710 210	COMBINATION SWITCH I-ABS/DL/HG, RIGHT (to 12/02)	1
2	61 31 7 710 208	COMBINATION SWITCH I-ABS/DL, RIGHT (to 12/02)	1
2	61 31 7 710 208	COMBINATION SWITCH I-ABS/DL, RIGHT (to 12/02)	1
2	61 31 7 710 208	COMBINATION SWITCH I-ABS/DL, RIGHT (to 12/02)	1
2	61 31 7 710 226	COMBI SWITCH R.ABS/HTD HNDGRP/CONT.LIGHT (to 12/02)	1
2	61 31 7 710 226	COMBI SWITCH R.ABS/HTD HNDGRP/CONT.LIGHT (to 12/02)	1
2	61 31 7 710 226	COMBI SWITCH R.ABS/HTD HNDGRP/CONT.LIGHT (to 12/02)	1
2	61 31 7 710 226	COMBI SWITCH R.ABS/HTD HNDGRP/CONT.LIGHT (to 12/02)	1
2	61 31 7 710 226	COMBI SWITCH R.ABS/HTD HNDGRP/CONT.LIGHT (to 12/02)	1
2	61 31 7 710 226	COMBI SWITCH R.ABS/HTD HNDGRP/CONT.LIGHT (to 12/02)	1
2	61 31 7 710 226	COMBI SWITCH R.ABS/HTD HNDGRP/CONT.LIGHT (to 12/02)	1
3	32 72 2 320 568	COUNTERSUNK SCREW, STAINLESS STEEL - M4X16 (to 12/02)	1
4	07 11 9 901 583	COUNTERSUNK HEAD SCREW - M4X10 SW (to 12/02)	1
