R1150GS ADV (R21A) | Electrical System

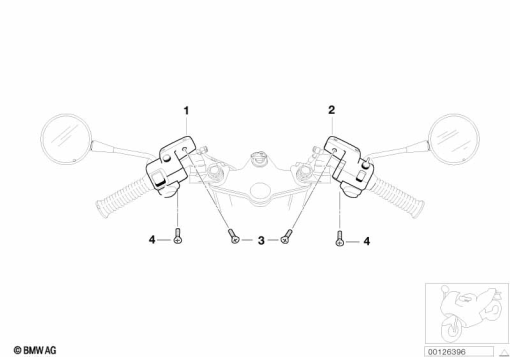

COMB. SWITCH HANDLEBAR/EU-CONTIN. LIGHT
Diagram #61_1680 | 7 parts
100%
Parts List (7)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61 31 7 708 345 | COMBINATION SWITCH LEFT (from 12/02) | 1 | |
| 2 | 61 31 7 709 740 | COMBINATION SWITCH RIGHT ABS/CONT LIGHT (from 12/02) | 1 | |
| 2 | 61 31 7 708 360 | COMBI SWITCH RGHT,HTD HNDGRIP/CONT.LIGHT (from 12/02) | 1 | |
| 2 | 61 31 7 708 356 | COMBI SWITCH RIGHT, CONTINUOUS LIGHT (from 12/02) | 1 | |
| 2 | 61 31 7 709 742 | COMBI SWITCH R.ABS/HTD HNDGRP/CONT.LIGHT (from 12/02) | 1 | |
| 3 | 07 11 9 901 583 | COUNTERSUNK HEAD SCREW - M4X10 SW (from 12/02) | 1 | |
| 4 | 61 31 7 650 807 | SCREW - KA30X16 (from 12/02) | 1 |
