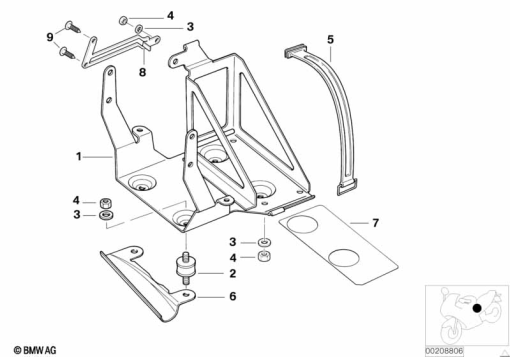

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61 21 2 316 943 | BATTERY TRAY | - | |
61 21 2 306 099 | BATTERY TRAYAlternative for position 1 | - | ||
| 2 | 61 21 2 305 050 | RUBBER MOUNTING | - | |
| 3 | 07 11 9 932 0701 | SS 6MM WASHER | - | |
07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN (to 08/90)Alternative for position 3 | - | ||
07 11 9 932 073 | BLACK SPRING WASHERAlternative for position 3 | - | ||
07 11 9 904 446 | WASHER - 5-200 HV-ZNNIVAlternative for position 3 | - | ||
| 4 | 07 11 9 905 543 | HEX NUT - M6-8-ZNNIV SI | - | |
| 5 | 61 21 2 306 747 | TENSION STRAP - L=310MM | - | |
| 6 | 61 13 2 306 191 | CABLE GUIDE | - | |
| 7 | 61 21 2 306 431 | FOIL | - | |
| 8 | 61 21 2 306 922 | 0.08 | - | |
| 9 | 07 11 9 907 646 | FILLISTER HEAD SCREW - M6X10 | - |
