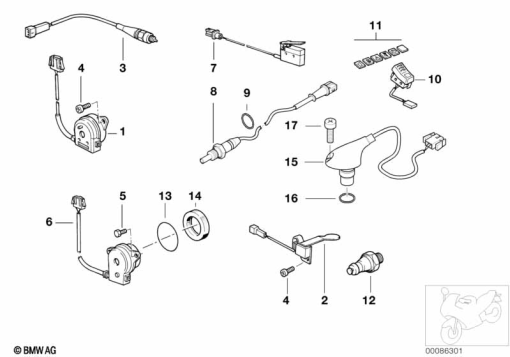

Parts List (5)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 61 31 1 459 747 | BRAKE LIGHT SWITCH FOOT BRAKE | - | |
61 31 2 305 988 | BRAKE LIGHT SWITCH FOOT BRAKE - L=580MMAlternative for position 2 | - | ||
| 3 | 61 31 1 459 569 | SWITCH | - | |
| 4 | 12 31 2 322 411 | FILLISTER-HEAD SCREW - M5X8 | - | |
| 7 | 61 31 2 305 735 | CLUTCH SWITCH | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
