R1150GS ADV (R21A) | Brakes

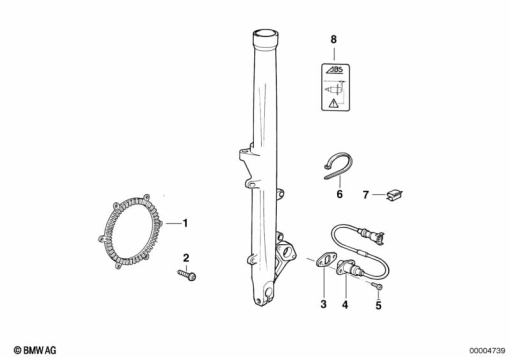

WHEELSPEED SENSOR, INTEGRAL ABS, FRONT
Diagram #34_0999 | 17 parts | 2 available in shop
100%
Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 51 2 314 784 | FRONT ABS SENSOR RING (to 09/02) | 1 | |
| 1 | 34 52 7 667 325 | SENSOR RING, FRONT, INTEGRAL ABS (from 09/02) | 1 | |
| 2 | 07 14 7 120 342 | FILLISTER HEAD SCREW - M5X10 (to 09/02) | 1 | |
| 3 | 34 51 1 458 406 | SHIM - 0,100MM (to 09/02) | 1 | |
| 3 | 34 51 1 458 407 | SHIM - 0,200MM (to 09/02) | 1 | |
| 3 | 34 51 1 458 408 | SHIM - 0,300MM (to 09/02) | 1 | |
| 3 | 34 51 1 458 409 | SHIM - 0,500MM (to 09/02) | 1 | |
| 3 | 34 51 2 310 338 | SHIM - 0,400MM (to 09/02) | 1 | |
| 3 | 34 51 2 310 339 | SHIM - 1,000MM (to 09/02) | 1 | |
| 3 | 34 51 2 310 340 | SHIM - 0,050MM (to 09/02) | 1 | |
| 3 | 34 51 2 325 976 | SHIM - 0,070MM (to 09/02) | 1 | |
| 4 | 34 52 2 331 289 | PULSE GENERATOR (to 09/02) | 1 | |
| 4 | 34 52 2 333 484 | ROTATIONAL-SPEED SENSOR, ABS (from 09/02) | 1 | |
| 5 | 34 51 1 458 494 | FILLISTER-HEAD SCREW - M5X14 | 1 | |
| 6 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | 1 | |
| 7 | 07 14 7 566 122 | FIXING CLAMP - A=4,0 - 4,5MM | 1 | |
| 7 | 34 52 7 664 098 | CABLE CLAMP - D=6/4,5MM | 1 |
