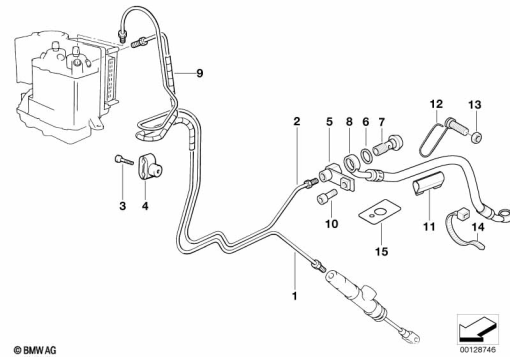

Parts List (19)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 32 2 335 695 | REAR BRAKE PIPE, INLET - ABS (to 09/02) | 1 | |
| 1 | 34 32 7 661 027 | REAR BRAKE PIPE, INLET (from 09/02) | 1 | |
| 1 | 34 51 2 333 511 | PRESSURE MODULATOR (from 09/02) | 1 | |
| 1 | 34 51 7 654 982 | CLAMP (from 09/02) | 1 | |
| 2 | 34 32 2 335 697 | BRAKE PIPE, OUTLET, REAR - ABS (to 09/02) | 1 | |
| 2 | 34 32 2 338 141 | BRAKE PIPE, OUTLET, REAR (from 09/02) | 1 | |
| 1 | 34 51 7 654 982 | CLAMP (from 09/02) | 1 | |
| 1 | 34 51 7 661 591 | GASKET RING (from 09/02) | 1 | |
| 5 | 34 32 7 660 386 | HOLDER | 1 | |
| 6 | 07 11 9 963 072 | GASKET RING - A10X13,5-CU | 1 | |
| 7 | 34 32 2 331 539 | BANJO BOLT, CHROME - M10X1 | 1 | |
| 8 | 34 32 7 684 408 | STAHLFLEX BRAKE HOSE - L=370MM | 1 | |
| 9 | 34 32 2 310 078 | SPIRAL CONDUIT - L=1500MM | 1 | |
| 10 | 07 11 9 900 608 | FILLISTER-HEAD SCREW - M6X12-8.8-MK | 1 | |
| 11 | 34 32 7 654 996 | HOSE | 1 | |
| 12 | 34 32 7 654 987 | HOSE CLAMP | 1 | |
| 13 | 07 12 9 905 471 | HEX NUT - AM6-8-ZNNIV SI | 1 | |
| 14 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | 1 | |
| 15 | 46 54 2 315 901 | FOIL | 1 |
