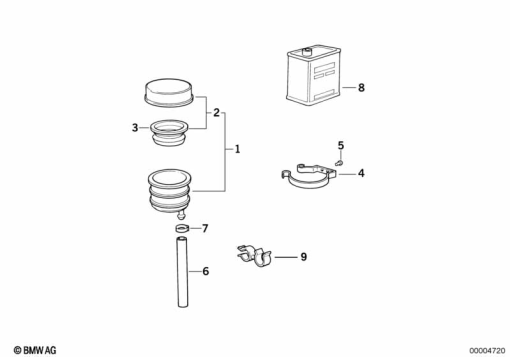

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 31 2 314 082 | EXPANSION TANK | - | |
| 2 | 34 31 2 314 091 | COVER | - | |
| 3 | 34 31 2 314 092 | RUBBER COVER | - | |
| 4 | 46 51 2 314 312 | BRACKET FOR BRAKE FLUID RESERVOIR, REAR | - | |
| 5 | 07 12 9 948 747 | BLIND RIVET - 3,2 2A | - | |
| 6 | 34 32 2 314 742 | HOSE, BULK - 6X10 (meter) | - | |
| 7 | 17 11 1 460 922 | HOSE CLAMP - D=12,3MM | - | |
| 8 | 83 13 2 467 961 | BRAKE FLUID DOT4 LV, LOW VISCOSITY - 250ML (to 09/07) | - | |
83105A87361 | BRAKE FLUID DOT4 LV, LOW VISCOSITY - 250MLAlternative for position 8 | - | ||
83135A824F1 | BRAKE FLUID DOT4, LOW-VISCOSITY EU - 60LAlternative for position 8 | - |
