R1150GS ADV (R21A) | Brakes

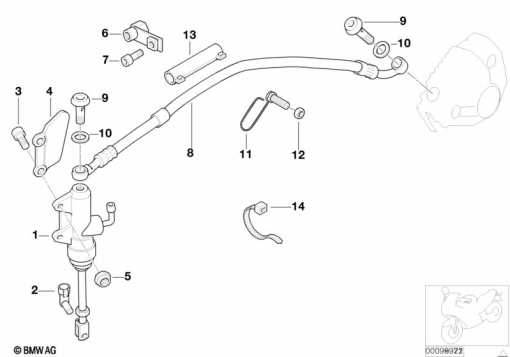

REAR BRAKE MASTER CYLINDER
Diagram #34_1276 | 16 parts | 6 available in shop
100%
Parts List (16)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 31 7 661 782 | REAR BRAKE MASTER CYLINDER - D=13MM | 1 | |
| 1 | 34 31 7 660 907 | REAR BRAKE MASTER CYLINDER - D=14,29MM | 1 | |
| 2 | 07 12 9 934 961 | PIN - 6X12 | 1 | |
| 3 | 07 12 9 903 807 | ISA SCREW - M6X25-8.8-ZNS3 | 1 | |
| 4 | 46 71 7 664 451 | COVERING RIGHT | 1 | |
| 5 | 07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SI | 1 | |
| 6 | 34 32 7 660 386 | HOLDER | 1 | |
| 7 | 07 11 9 900 608 | FILLISTER-HEAD SCREW - M6X12-8.8-MK | 1 | |
| 8 | 34 32 7 677 201 | STAHLFLEX BRAKE HOSE - L=345MM | 1 | |
| 8 | 34 32 7 684 408 | STAHLFLEX BRAKE HOSE - L=370MM | 1 | |
| 9 | 34 32 2 331 539 | BANJO BOLT, CHROME - M10X1 | 1 | |
| 10 | 07 11 9 963 072 | GASKET RING - A10X13,5-CU | 1 | |
| 11 | 34 32 7 676 400 | HOSE CLAMP | 1 | |
| 12 | 07 12 9 905 471 | HEX NUT - AM6-8-ZNNIV SI | 1 | |
| 13 | 34 32 7 654 996 | HOSE | 1 | |
| 14 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | 1 |
