R1150GS ADV (R21A) | Brakes

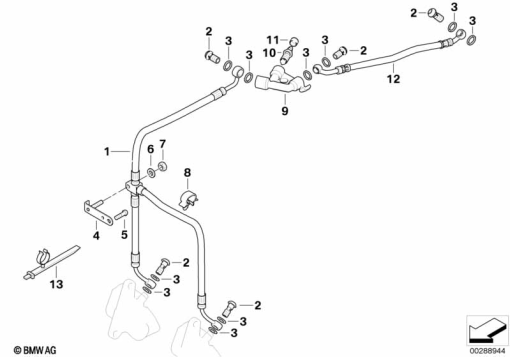

FRONT BRAKE PIPE STAHLFLEX
Diagram #34_1275 | 17 parts | 6 available in shop
100%
Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 32 7 677 199 | STAHLFLEX BRAKE HOSE | 1 | |
| 2 | 34 32 2 331 540 | BANJO BOLT, BLACK - M10X1 | 1 | |
| 3 | 07 11 9 963 072 | GASKET RING - A10X13,5-CU | 1 | |
| 4 | 34 32 7 672 354 | HOLDER | 1 | |
| 5 | 07 14 7 120 342 | FILLISTER HEAD SCREW - M5X10 | 1 | |
| 6 | 07 11 9 932 0701 | SS 6MM WASHER | 1 | |
| 6 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN (to 08/90) | 1 | |
| 6 | 07 11 9 932 073 | BLACK SPRING WASHER | 1 | |
| 6 | 07 11 9 904 446 | WASHER - 5-200 HV-ZNNIV | 1 | |
| 7 | 07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SI | 1 | |
| 8 | 34 52 7 664 098 | CABLE CLAMP - D=6/4,5MM | 1 | |
| 8 | 64 11 1 364 073 | TUBING SUPPORT - D=10,8MM | 1 | |
| 9 | 34 32 7 650 965 | DISTRIBUTION PIECE | 1 | |
| 10 | 34 21 1 236 793 | VENT SCREW - M10X1-ZN | 1 | |
| 11 | 34 21 1 236 794 | DUST CAP | 1 | |
| 12 | 34 32 7 677 198 | STAHLFLEX BRAKE HOSE | 1 | |
| 13 | 13 31 1 707 705 | HOSE CLAMP | 1 |
