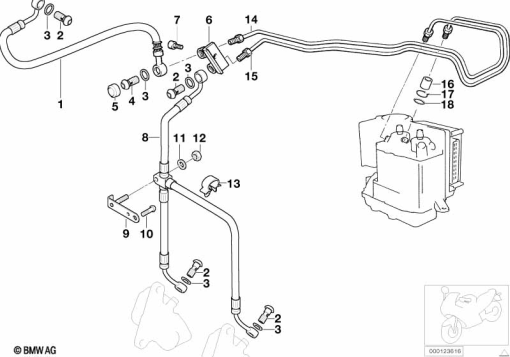

Parts List (22)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 32 7 677 198 | STAHLFLEX BRAKE HOSE (to 09/02) | 1 | |
| 2 | 34 32 2 331 539 | BANJO BOLT, CHROME - M10X1 (to 09/02) | 1 | |
| 3 | 07 11 9 963 072 | GASKET RING - A10X13,5-CU (to 09/02) | 1 | |
| 4 | 34 32 7 666 398 | VENTILATION BOLT (to 09/02) | 1 | |
| 5 | 34 32 7 666 399 | CAP (to 09/02) | 1 | |
| 6 | 34 32 2 330 717 | DISTRIBUTION PIECE (to 09/02) | 1 | |
| 7 | 46 63 2 322 460 | FILLISTER HEAD WITH WASHER - M6X12-Z3-8.8 (to 09/02) | 1 | |
| 8 | 34 32 7 677 199 | STAHLFLEX BRAKE HOSE (to 09/02) | 1 | |
| 9 | 34 32 7 672 354 | HOLDER (to 09/02) | 1 | |
| 10 | 07 14 7 120 342 | FILLISTER HEAD SCREW - M5X10 (to 09/02) | 1 | |
| 11 | 07 11 9 932 0701 | SS 6MM WASHER | 1 | |
| 11 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN (to 09/02) | 1 | |
| 11 | 07 11 9 932 073 | BLACK SPRING WASHER | 1 | |
| 11 | 07 11 9 904 446 | WASHER - 5-200 HV-ZNNIV (to 09/02) | 1 | |
| 12 | 07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SI (to 09/02) | 1 | |
| 13 | 34 52 7 664 098 | CABLE CLAMP - D=6/4,5MM (to 09/02) | 1 | |
| 13 | 64 11 1 364 073 | TUBING SUPPORT - D=10,8MM (to 09/02) | 1 | |
| 14 | 34 32 2 314 809 | BRAKE PIPE - ABS (to 09/02) | 1 | |
| 15 | 34 32 2 314 811 | BRAKE PIPE - ABS (to 09/02) | 1 | |
| 16 | 34 51 7 654 981 | COVERING CAP (to 09/02) | 1 | |
| 17 | 34 51 7 654 982 | CLAMP (to 09/02) | 1 | |
| 18 | 34 51 7 661 591 | GASKET RING (to 09/02) | 1 |
