R1150GS ADV (R21A) | Brakes

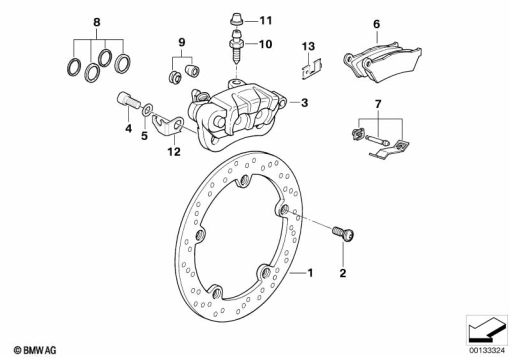

REAR WHEEL BRAKE, SPOKE WHEEL
Diagram #34_0995 | 18 parts | 4 available in shop
100%
Parts List (18)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 21 2 314 151 | REAR BRAKE DISC | 1 | |
| 2 | 33 17 7 709 205 | TORX SCREW - M8X15,5-MK-ZNS3 | 1 | |
| 3 | 34 21 7 105 993 | BRAKE CALIPER, REAR - D=26/28MM | 1 | |
| 4 | 34 21 7 655 484 | SCREW - M10X25 | 1 | |
| 5 | 07 11 9 904 168 | WASHER - 10-200 HV-ZNNIV | 1 | |
| 6 | 34 21 2 335 465 | SET: SET, BRAKE PADS, ORGANIC | 1 | |
| 6 | 83 12 2 296 187 | Brake Pad Paste - 5 ml | 1 | |
| 6 | 34 21 2 335 465 | SET: SET, BRAKE PADS, ORGANIC (from 09/02) | 1 | |
| 6 | 83 12 2 296 187 | Brake Pad Paste - 5 ml | 1 | |
| 6 | 34 21 7 660 281 | SET: OF BRAKE PADS, SINTERED METAL - D=26/28MM (from 09/02) | 1 | |
| 6 | 83 12 2 296 187 | Brake Pad Paste - 5 ml | 1 | |
| 7 | 34 21 2 330 313 | SET MOUNTING PARTS | 1 | |
| 8 | 34 21 2 330 311 | REPAIR SET BRAKE CALIPER - D=26/28MM | 1 | |
| 9 | 34 21 2 330 312 | REPAIR KIT, RUBBER COVER | 1 | |
| 10 | 34 21 2 314 017 | VENT SCREW - M 6 | 1 | |
| 11 | 34 21 2 314 001 | 34 21 2 314 001 | 1 | |
| 12 | 34 51 2 311 021 | BRACKET | 1 | |
| 13 | 34 21 2 330 309 | THRUST SPRING | 1 |
