R1100GS (259E) | Vehicle Trim
PAINTED PARTS 765 ARKTISSI./DAKARGELB

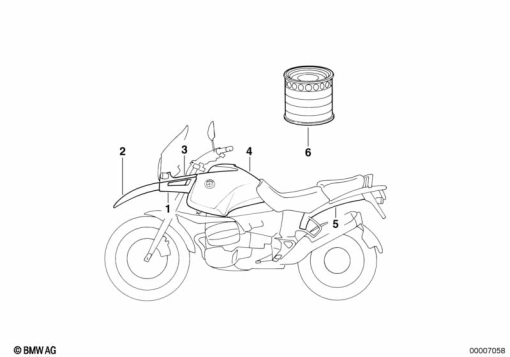

Diagram #51_3761 | 12 parts | 2 available in shop
100%
Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 2 313 895 | LATERAL TRIM PANEL LEFT - SILVER | 1 | |
| 1 | 46 63 2 313 896 | LATERAL TRIM PANEL RIGHT - SILVER | 1 | |
| 2 | 46 61 7 651 962 | UPPER MUDGUARD - ARKTISSILVER | 1 | |
| 3 | 46 63 2 324 244 | COVER,TOP - SILVER | 1 | |
| 4 | 16 11 7 651 971 | FUEL TANK WITH ORNAMENTAL LINE - ARKTISSI/DAKARG | 1 | |
| 5 | 46 62 7 651 973 | REAR MUDGUARD - DAKARYELLOW 2 | 1 | |
| 6 | 51 91 0 145 932 | BASE PAINT, TWO-COAT ARKTISSILVER - 500ML 309 | 1 | |
| 6 | 51 91 0 301 923 | SET: TOUCH-UP STICK DAKAR YELLOW - 2X12ML 337 | 1 | |
| 6 | 51 91 0 302 033 | SET: TOUCH-UP STICK IN ARKTISSILVER MET. - 2X12ML 309 | 1 | |
| 6 | 51 91 1 052 365 | SET: SPRAY PAINT DAKARYELLOW SOLID - 2X150ML 337 | 1 | |
| 6 | 51 91 1 240 266 | RULING INK BLACK - 250ML 102 | 1 | |
| 6 | 51915A55B66 | SET: SPRAY-PAINT ARKTISSILVER MET. - 2X150ML 309 | 1 |
