R1100GS (259E) | Vehicle Trim
PAINTED PARTS 786 ARKTISSIL./NACHTSW

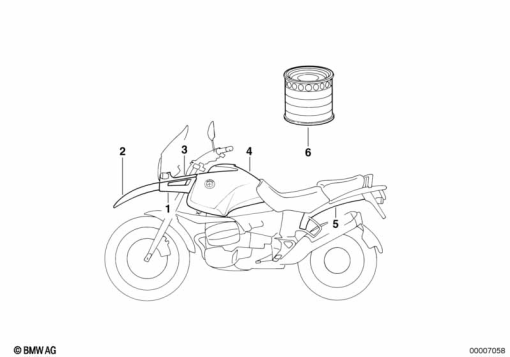

Diagram #51_4114 | 12 parts | 2 available in shop
100%
Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 2 313 895 | LATERAL TRIM PANEL LEFT - SILVER | 1 | |
| 1 | 46 63 2 313 896 | LATERAL TRIM PANEL RIGHT - SILVER | 1 | |
| 2 | 46 61 7 651 962 | UPPER MUDGUARD - ARKTISSILVER | 1 | |
| 3 | 46 63 2 324 244 | COVER,TOP - SILVER | 1 | |
| 4 | 16 11 7 657 490 | FUEL TANK SHEET-STEEL W DECOR LINE - ARKTIS/NACHTSW. | 1 | |
| 5 | 46 62 2 325 053 | REAR MUDGUARD - NIGHT BLACK | 1 | |
| 6 | 51 91 0 145 923 | BASE PAINT, TWO-COAT BLACK II - U103/500ML | 1 | |
| 6 | 51 91 0 145 932 | BASE PAINT, TWO-COAT ARKTISSILVER - 500ML 309 | 1 | |
| 6 | 51 91 0 301 947 | SET: TOUCH-UP STICK BLACK - 2X12ML 668/C2W | 1 | |
| 6 | 51 91 0 302 033 | SET: TOUCH-UP STICK IN ARKTISSILVER MET. - 2X12ML 309 | 1 | |
| 6 | 51915A55B65 | SET: SPRAY PAINT SOLID BLACK - 2X150MLU668/C2W | 1 | |
| 6 | 51915A55B66 | SET: SPRAY-PAINT ARKTISSILVER MET. - 2X150ML 309 | 1 |
