R1100GS (259E) | Vehicle Trim
PAINTED PARTS 733 MARRAKESCHROT 2

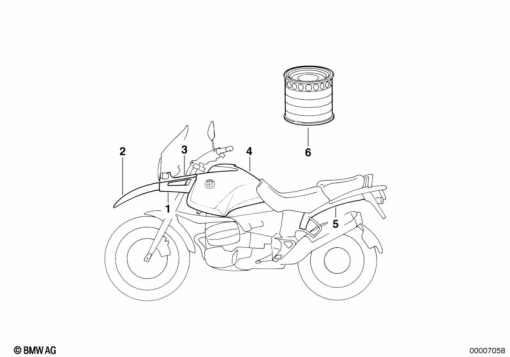

Diagram #51_3670 | 8 parts | 2 available in shop
100%
Parts List (8)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 2 313 895 | LATERAL TRIM PANEL LEFT - SILVER (from 08/98) | 1 | |
| 1 | 46 63 2 313 896 | LATERAL TRIM PANEL RIGHT - SILVER (from 08/98) | 1 | |
| 2 | 46 61 2 352 000 | UPPER MUDGUARD - MARRAKESCHROT 2 (from 08/98) | 1 | |
| 3 | 46 63 2 324 244 | COVER,TOP - SILVER (from 08/98) | 1 | |
| 4 | 16 11 2 351 999 | SHEET-STEEL FUEL TANK - MARRAKESCHROT 2 (from 08/98) | 1 | |
| 5 | 46 62 2 352 001 | REAR MUDGUARD - MARRAKESCHROT 2 (from 08/98) | 1 | |
| 6 | 51 91 0 144 596 | SET: TWO STAGE TOUCH UP MARRAKESCHROT2 - 392 (from 08/98) | 1 | |
| 6 | 51 91 2 309 849 | SET: TWO STAGE SPRAY MARRAKESCHROT2 - 392 (from 08/98) | 1 |
